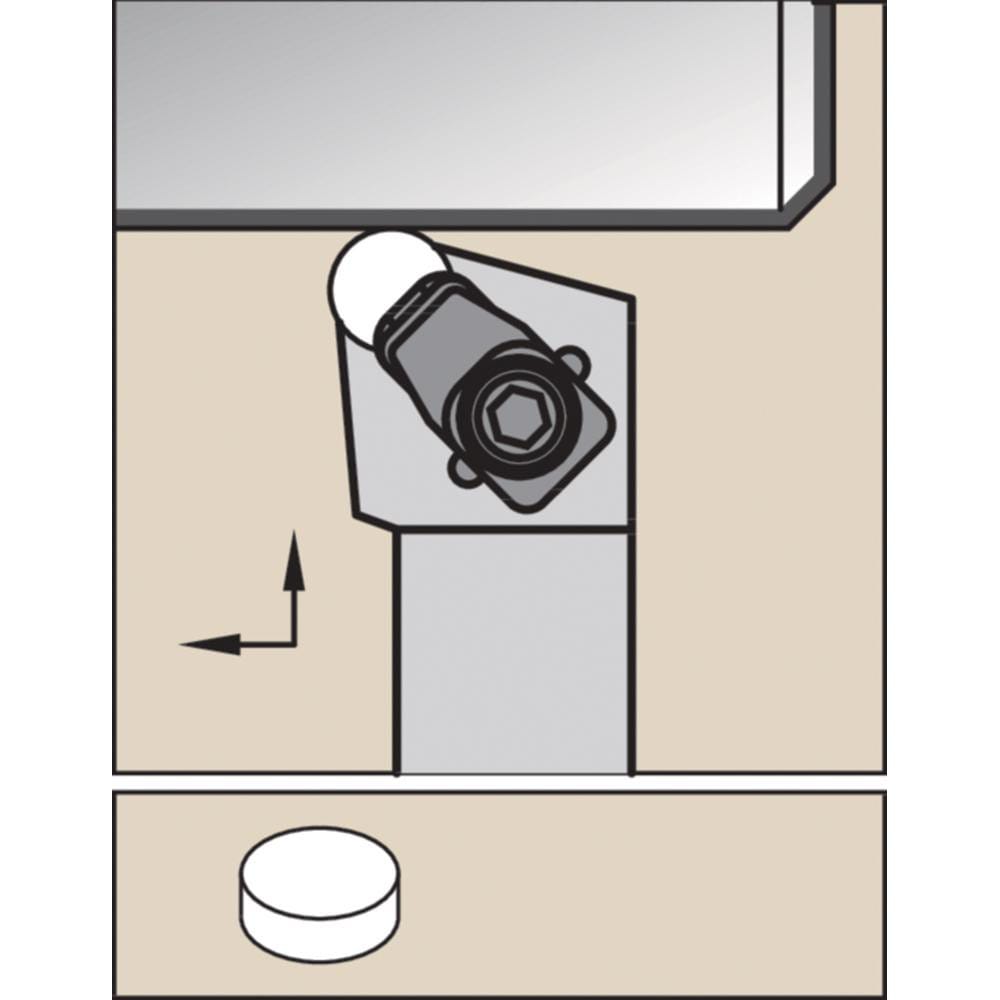

Brand: Widia / Part #: 3032680

Brand: Widia / Part #: 3032680


Item #: 97346027
Brand: Widia
Model #: 3032680

Product Specifications

Cutting Direction Left Hand
Hand of Holder Left Hand
Compatible Insert Size Code 1207
Toolholder Style CRSNL
Rake Negative
Rake Angle 0 (Axial);0 (Radial)
Multi-use Tool Yes
Lead Angle 9.000
Insert Holding Method Clamp
Insert Compatibility RN.N1207
Shank Width (mm) 25.00
Shank Height (mm) 32.00
Series CRSN
Overall Length (mm) 170.0000
Cutting Tool Application Facing; Copying; Turning
Head Length (mm) 26.00
Back of Bar to Cutting Edge (mm) 32.00
Primary Workpiece Material Universal
Insert Width (mm) 12.70
Toolholder Material Steel
ISO Number CRSNL3225P12MN7
Complete Insert Compatibility RN.N
Insert Thickness 7.94
Coolant Through No
Insert Inscribed Circle (mm) 12.70
$219.26
