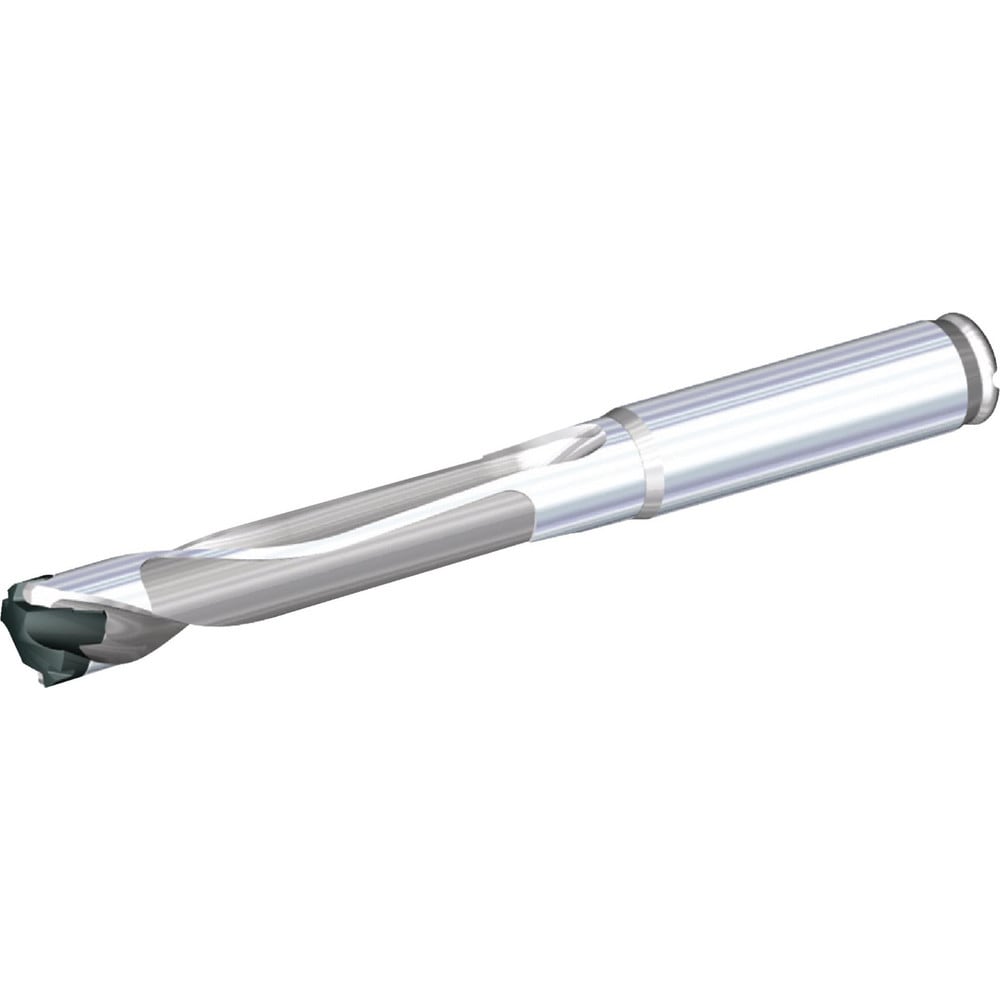

Brand: Widia / Part #: 3851547

Brand: Widia / Part #: 3851547


Item #: 84253590
Brand: Widia
Model #: 3851547

Product Specifications

Minimum Drill Diameter (Decimal Inch) 0.3740
Maximum Drill Diameter (Decimal Inch) 0.3933
Drill Depth by Diameter Ratio 5xD
Maximum Drill Depth (Decimal Inch) 1.9700
Shank Type Cylindrical
Insert Style TDM
Shank Diameter (Inch) 7/16
Shank Diameter (Decimal Inch) 0.4375
Insert Seat Size W13
Tool Material Steel
Compatible Insert Style TDM
Compatible Insert Size Code W13
Overall Length (Decimal Inch) 4.3750
Overall Length (Inch) 4-3/8
Series TDM1
Toolholder Style TDM1
Flute Length (Decimal Inch) 2.5870
Body Length (Decimal Inch) 2.5870
Shank Length (Decimal Inch) 1.6701
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Tip Length (Decimal Inch) 0.0717
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
$208.26
