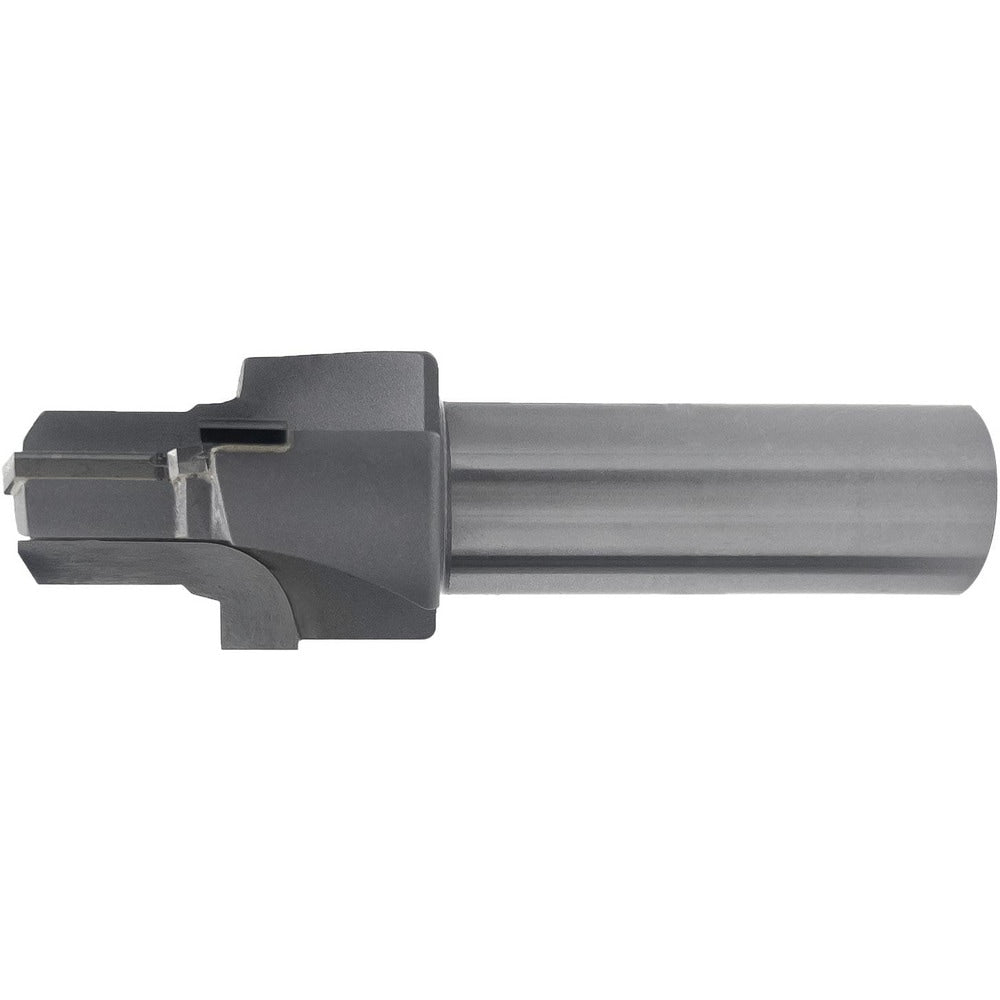

Brand: Scientific Cutting Tools / Part #: SAEJ1926-02R-X3
Item #: 99242646
Brand: Scientific Cutting Tools
Model #: SAEJ1926-02R-X3
Product Specifications
| Spotface Diameter (Decimal Inch) | 0.6820 |
| Tube Outside Diameter Compatibility (Inch) | 1/8 |
| Pilot Type | Reamer |
| Port Thread Size (Decimal Inch) | 5/16-24 |
| Tool Material | Carbide-Tipped |
| Tube Dash Number | 2.000 |
| Minimum Pilot Diameter (Decimal Inch) | 0.2710 |
| Pilot Length | 0.3970 |
| Overall Length (Inch) | 3 |
| Number Of Flutes | 3 |
| Standards | SAEJ1926; MS16142 |
| Shank Type | Straight |
| Identification Groove | No |
| Series | Coolant Through |
| Seal Angle | 12 |
| Thread Type | UNF |
| Flute Type | Straight |
| Shank Diameter (Decimal Inch) | 1/2 |
| Shank Length (Decimal Inch) | 1.7500 |
| Maximum Pilot Diameter (Decimal Inch) | 0.3605 |
| Head Length (Decimal Inch) | 1.2500 |
| Workpiece Compatibility | Tubes |
| Coating/Finish | Bright |
