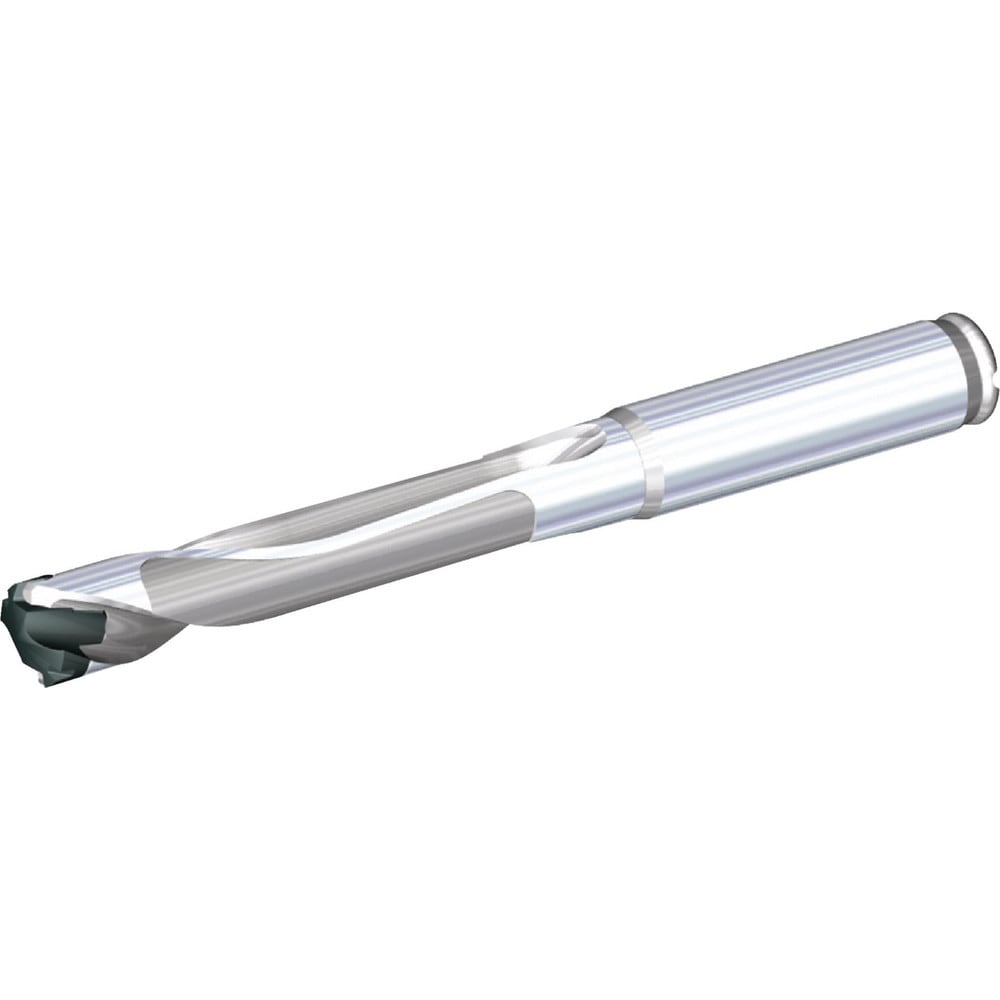

Brand: Widia / Part #: 3851549

Brand: Widia / Part #: 3851549


Item #: 84253608
Brand: Widia
Model #: 3851549

Product Specifications

Minimum Drill Diameter (Decimal Inch) 0.3937
Maximum Drill Diameter (Decimal Inch) 0.4130
Drill Depth by Diameter Ratio 5xD
Maximum Drill Depth (Decimal Inch) 2.0700
Shank Type Cylindrical
Insert Style TDM
Shank Diameter (Inch) 7/16
Shank Diameter (Decimal Inch) 0.4375
Insert Seat Size W14
Tool Material Steel
Compatible Insert Style TDM
Compatible Insert Size Code W14
Overall Length (Decimal Inch) 4.6250
Overall Length (Inch) 4-5/8
Series TDM1
Toolholder Style TDM1
Flute Length (Decimal Inch) 2.8390
Body Length (Decimal Inch) 2.8390
Shank Length (Decimal Inch) 1.6701
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Tip Length (Decimal Inch) 0.0756
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
$208.26
