Brand: Widia / Part #: 2951375

Brand: Widia / Part #: 2951375


Item #: 98375348
Brand: Widia
Model #: 2951375

Product Specifications

Cutting Direction Right Hand
Hand of Holder Right Hand
Compatible Insert Size Code 33.

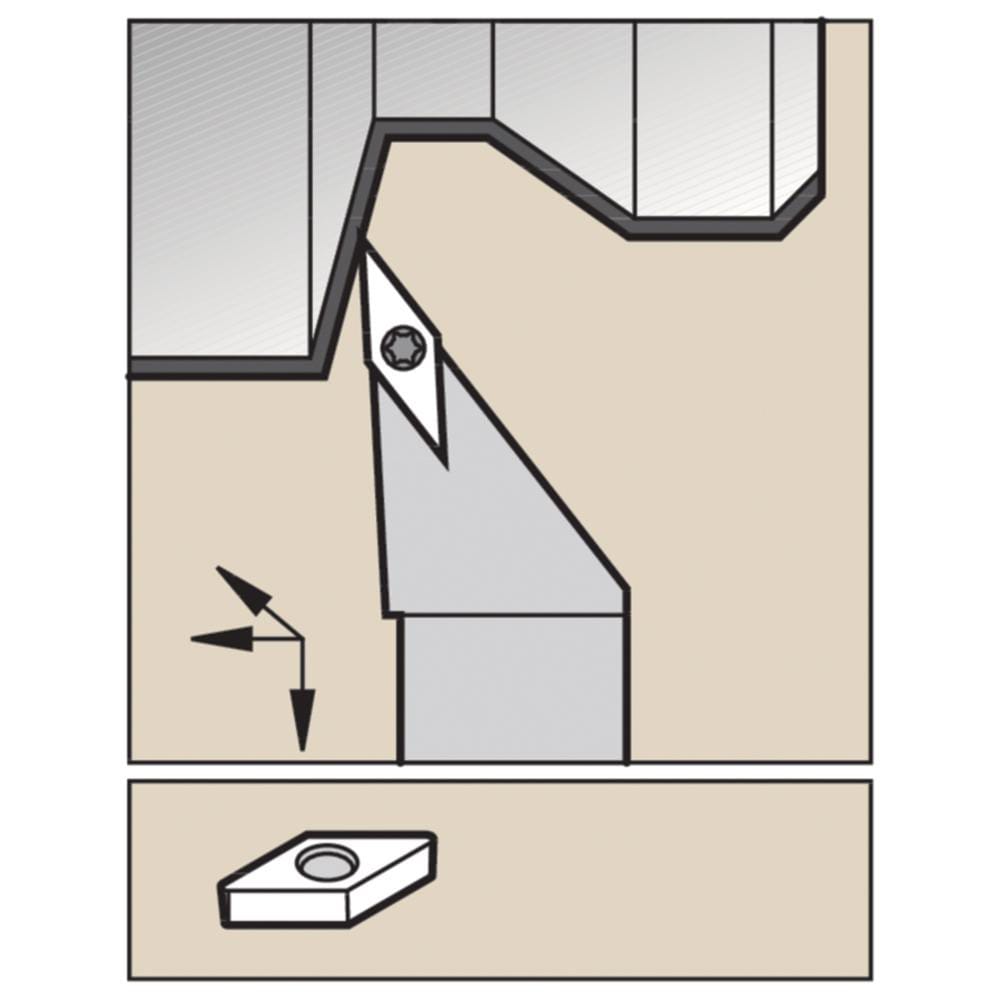

Toolholder Style SVJBR
Rake Positive
Rake Angle 0 (Axial);0 (Radial)
Multi-use Tool Yes
Lead Angle 93.000
Insert Holding Method Screw
Shank Width (Decimal Inch) 0.7500
Shank Width (Inch) 3/4
Insert Compatibility VB..33.
Shank Height (Decimal Inch) 0.7500
Shank Height (Inch) 3/4
Series SVJB
Overall Length (Decimal Inch) 4.5000
Overall Length (Inch) 4-1/2
Cutting Tool Application Copying; Turning
Head Length (Decimal Inch) 1.3800
Back of Bar to Cutting Edge (Inch) 1
Back of Bar to Cutting Edge (Decimal Inch) 1.0000
Primary Workpiece Material Universal
Insert Inscribed Circle (Decimal Inch) 0.3750
Insert Inscribed Circle (Inch) 3/8
Insert Width (Inch) 3/8
Insert Width (Decimal Inch) 0.3750
Toolholder Material Steel
ISO Number SVJBR123
Complete Insert Compatibility VB..
Coolant Through No
Insert Thickness (Decimal Inch) 0.1875
$115.06
