Brand: Widia / Part #: 2951370

Brand: Widia / Part #: 2951370


Item #: 98375991
Brand: Widia
Model #: 2951370

Product Specifications

Cutting Direction Right Hand
Hand of Holder Right Hand
Compatible Insert Size Code 32.5.

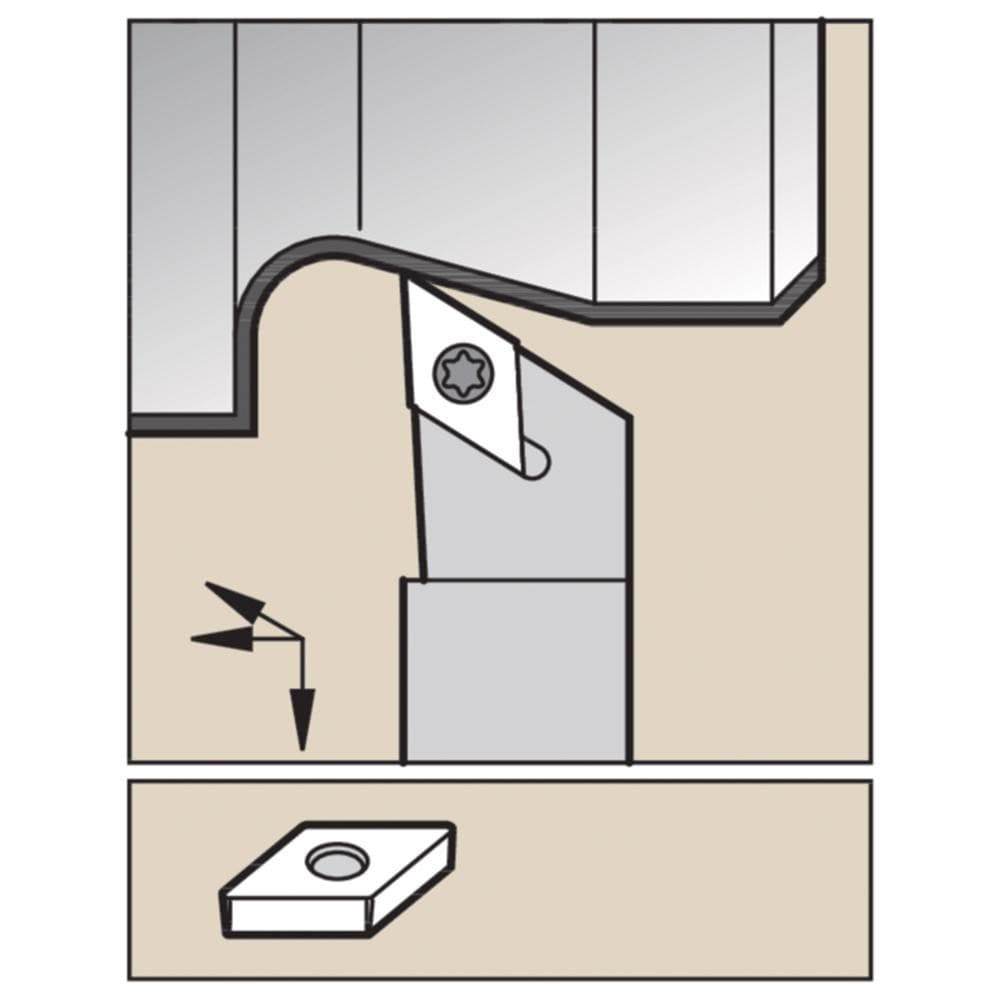

Toolholder Style SDJCR
Rake Positive
Rake Angle 0 (Axial);0 (Radial)
Multi-use Tool Yes
Lead Angle 93.000
Insert Holding Method Screw
Shank Width (Decimal Inch) 0.7500
Shank Width (Inch) 3/4
Insert Compatibility DC..32.5.
Shank Height (Decimal Inch) 0.7500
Shank Height (Inch) 3/4
Series SDJC
Overall Length (Decimal Inch) 4.5000
Overall Length (Inch) 4-1/2
Cutting Tool Application Copying; Turning
Head Length (Decimal Inch) 0.8800
Back of Bar to Cutting Edge (Inch) 1
Back of Bar to Cutting Edge (Decimal Inch) 1.0000
Primary Workpiece Material Universal
Insert Inscribed Circle (Decimal Inch) 0.3750
Insert Inscribed Circle (Inch) 3/8
Insert Width (Inch) 3/8
Insert Width (Decimal Inch) 0.3750
Toolholder Material Steel
ISO Number SDJCR123
Complete Insert Compatibility DC..
Coolant Through No
Insert Thickness (Decimal Inch) 0.1560
$115.06
