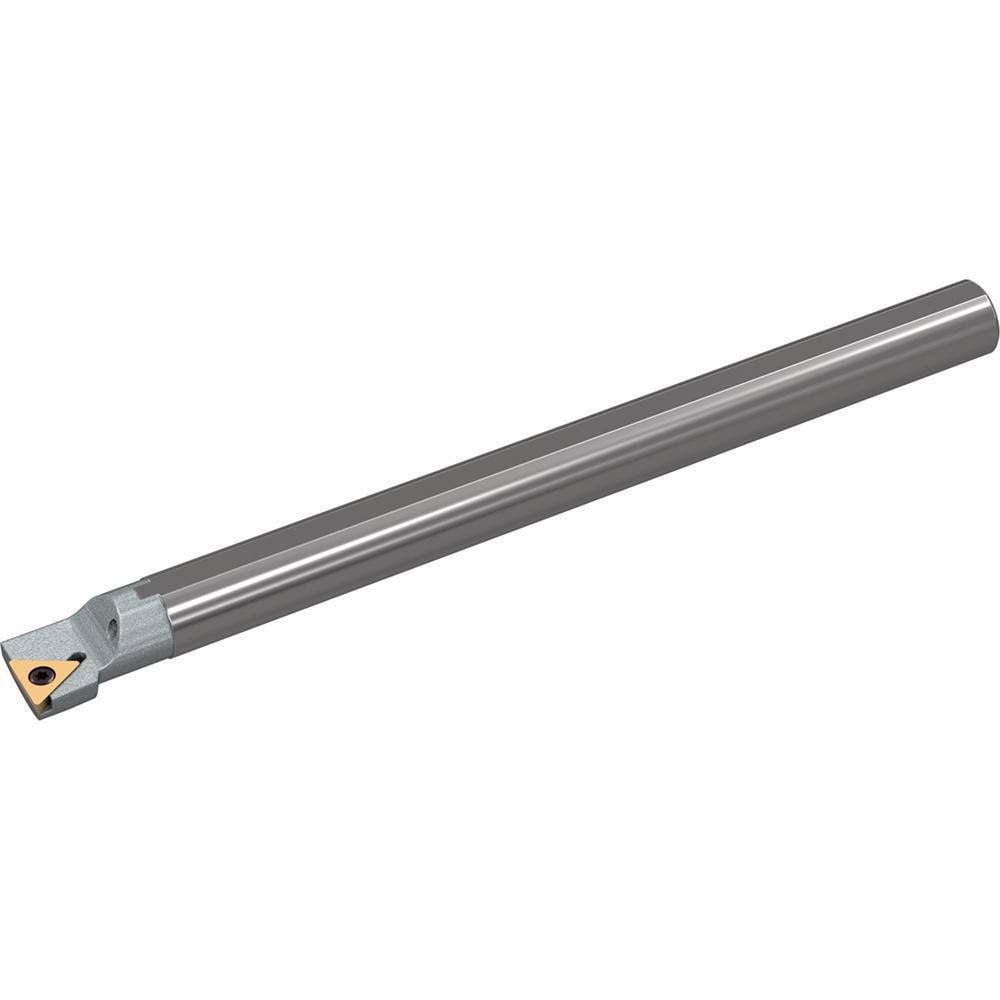

Brand: Widia / Part #: 5086728

Brand: Widia / Part #: 5086728


Item #: 02770253
Brand: Widia
Model #: 5086728

Product Specifications

Minimum Bore Diameter (Decimal Inch) 0.6000
Maximum Bore Depth (Decimal Inch) 1.5000
Toolholder Style STFPR
Tool Material Steel
Shank Diameter (Decimal Inch) 0.5000
Hand of Holder Right Hand
Shank Diameter (Inch) 1/2
Overall Length (Decimal Inch) 8.0000
Overall Length (Inch) 8
Compatible Insert Size Code TP..2151
Insert Holding Method Screw
Compatible Insert Shape Triangle
Insert Included No
Rake Positive
Cutting Direction Right Hand
Rake Angle -2.000
Lead Angle 0.000
Series A-STFP
Insert Inscribed Circle (Inch) 1/4
Compatible Insert Thickness (Decimal Inch) 0.0938
Compatible Insert Thickness (mm) 2.38
Multi-use Tool Yes
Cutting Tool Application Boring
Back of Bar to Cutting Edge (Decimal Inch) 0.5620
Center to Cutting Edge (Decimal Inch) 0.3120
Primary Workpiece Material Universal
Multi-Use Application Boring
Number of Inserts Used on Toolholder 1
Insert Thickness (Decimal Inch) 0.0938
Insert Thickness (Inch) 3/32
Coolant Hole Diameter (Decimal Inch) 0.1600
Number of Inserts Included in Order 0
Manufacturers Catalog Number A08RSTFPR2
Radial Rake 0
Coolant Through Yes
$113.97
