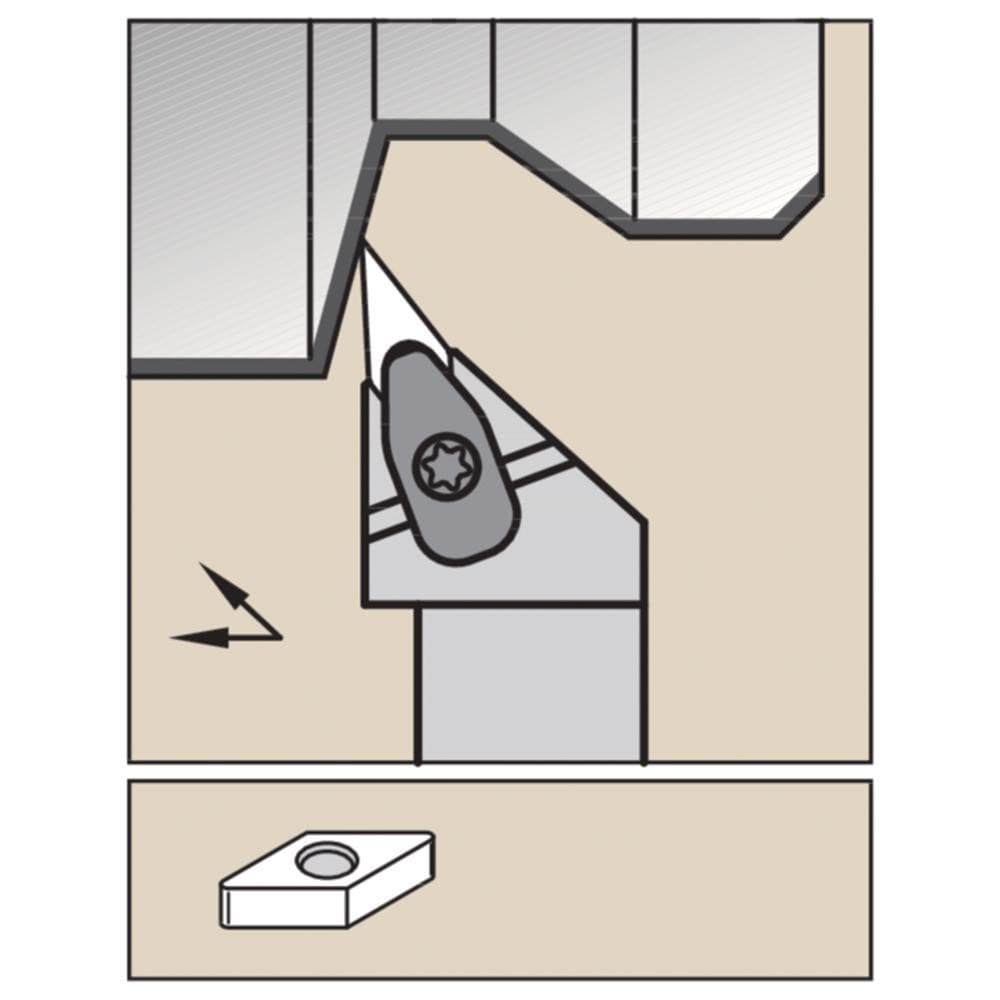

Brand: Widia / Part #: 5696733
Item #: 98373749
Brand: Widia
Model #: 5696733
Product Specifications
| Cutting Direction | Left Hand |
| Hand of Holder | Left Hand |
| Compatible Insert Size Code | 1604.. |
| Toolholder Style | DVJNL |
| Rake | Negative |
| Rake Angle | -9 (Axial);-5 (Radial) |
| Multi-use Tool | Yes |
| Lead Angle | 93.000 |
| Insert Holding Method | Clamp |
| Insert Compatibility | VN..1604.. |
| Shank Width (mm) | 25.00 |
| Shank Height (mm) | 25.00 |
| Series | DVJN |
| Overall Length (mm) | 150.0000 |
| Cutting Tool Application | Copying; Turning |
| Head Length (mm) | 46.00 |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Primary Workpiece Material | Universal |
| Insert Width (mm) | 9.53 |
| Toolholder Material | Steel |
| ISO Number | DVJNL2525M16KC04 |
| Complete Insert Compatibility | VN.. |
| Insert Thickness | 4.76 |
| Coolant Through | No |
| Insert Inscribed Circle (mm) | 9.53 |
