Brand: Widia / Part #: 5697894

Brand: Widia / Part #: 5697894


Item #: 97568299
Brand: Widia
Model #: 5697894

Product Specifications

Cutting Direction Right Hand
Hand of Holder Right Hand
Compatible Insert Size Code 1606..

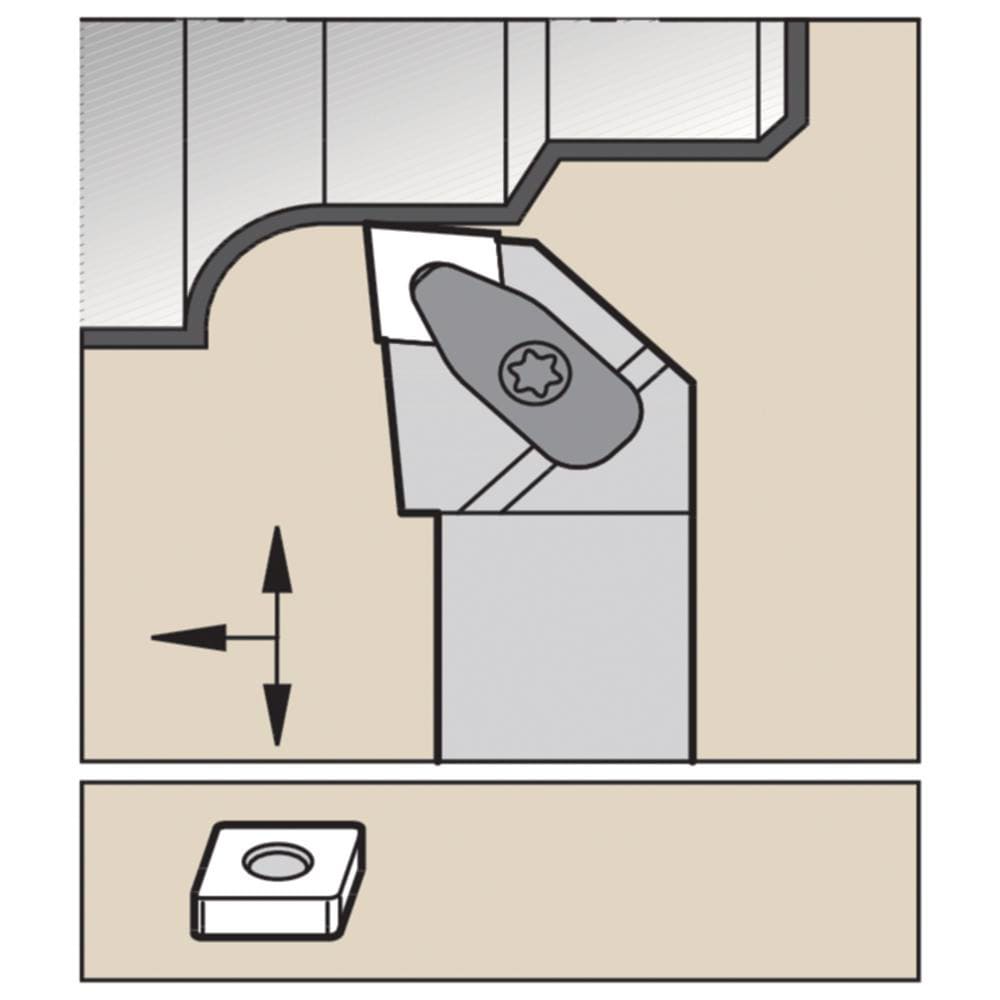

Toolholder Style DCLNR
Rake Negative
Rake Angle -5 (Axial);-5 (Radial)
Multi-use Tool Yes
Lead Angle 95.000
Insert Holding Method Clamp
Insert Compatibility CN..1606..
Shank Width (mm) 25.00
Shank Height (mm) 25.00
Series DCLN
Overall Length (mm) 150.0000
Cutting Tool Application Facing; Copying; Turning
Head Length (mm) 32.99
Back of Bar to Cutting Edge (mm) 32.00
Primary Workpiece Material Universal
Insert Width (mm) 15.88
Toolholder Material Steel
ISO Number DCLNR2525M16KC06
Complete Insert Compatibility CN..
Insert Thickness 6.35
Coolant Through No
Insert Inscribed Circle (mm) 15.88
$86.75
