Brand: Widia / Part #: 5564313

Brand: Widia / Part #: 5564313


Item #: 99303034
Brand: Widia
Model #: 5564313

Product Specifications

Cutting Direction Left Hand
Hand of Holder Left Hand
Compatible Insert Size Code 64.

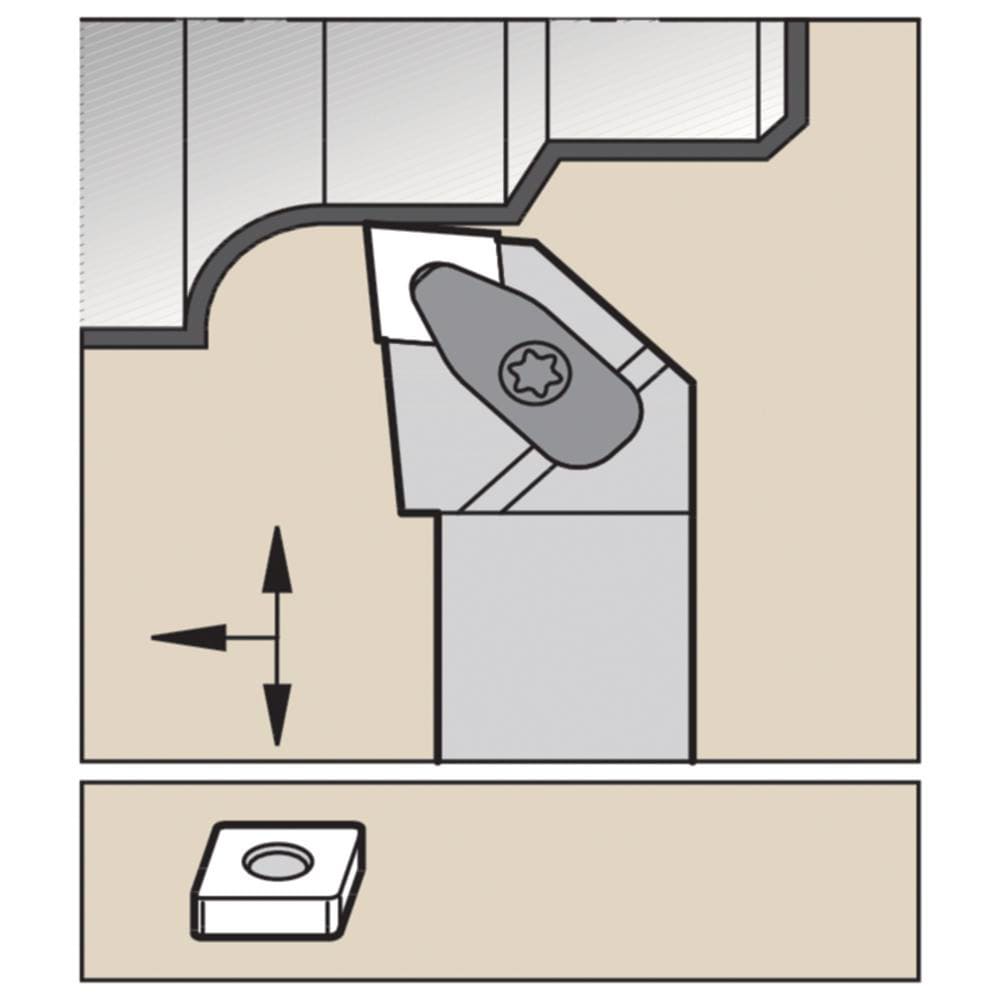

Toolholder Style DCLNL
Rake Negative
Rake Angle -5 (Axial);-5 (Radial)
Multi-use Tool Yes
Lead Angle 95.000
Insert Holding Method Clamp
Shank Width (Decimal Inch) 1.2500
Shank Width (Inch) 1-1/4
Insert Compatibility CN..64.
Shank Height (Decimal Inch) 1.2500
Shank Height (Inch) 1-1/4
Series DCLN
Overall Length (Decimal Inch) 6.0000
Overall Length (Inch) 6
Cutting Tool Application Facing; Turning
Head Length (Decimal Inch) 1.6250
Back of Bar to Cutting Edge (Inch) 1-1/2
Back of Bar to Cutting Edge (Decimal Inch) 1.5000
Primary Workpiece Material Universal
Insert Inscribed Circle (Decimal Inch) 0.7500
Insert Inscribed Circle (Inch) 3/4
Insert Width (Inch) 3/4
Insert Width (Decimal Inch) 0.7500
Toolholder Material Steel
ISO Number DCLNL206DKC4
Complete Insert Compatibility CN..
Coolant Through No
Insert Thickness (Decimal Inch) 0.2500
$90.72
