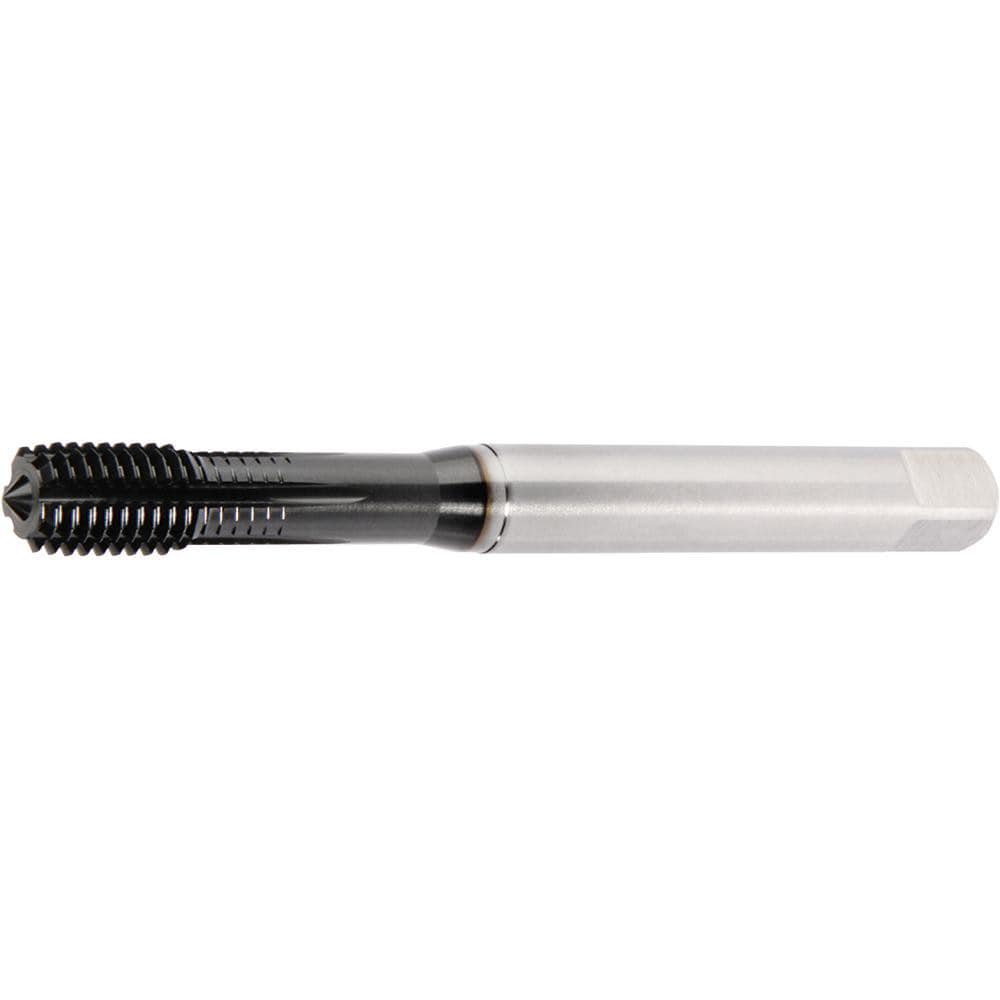

Brand: Widia / Part #: 4154672
Item #: 99310690
Brand: Widia
Model #: 4154672
Product Specifications
| Thread Size (mm) | M4x0.7 |
| Overall Length (mm) | 63.0000 |
| Chamfer | Semi-Bottoming |
| Coating/Finish | DLC |
| Thread Pitch (mm) | 0.70 |
| Thread Standard | Metric |
| Thread Direction | Right Hand |
| Material | High Speed Steel |
| Thread Length (mm) | 7.00 |
| Thread Depth (mm) | 21.00 |
| Thread Depth | 21.0000 |
| Shank Diameter (mm) | 4.5000 |
| Neck Length | 14.00 |
| Square Length (mm) | 6.00 |
| Material Application | Non-Ferrous Metals |
| Application | Metal |
| Series | GT22 |
| Tap Type | Blind |
| Tapping Depth (mm) | 21.00 |
| Shank Length (mm) | 42.000 |
| Square Size (mm) | 3.40 |
| Threads per Inch | 36 |
| Class Of Fit | 6HX |
| Coolant Through | No |
