Brand: Widia / Part #: 2828122
Item #: 02771657
Brand: Widia
Model #: 2828122

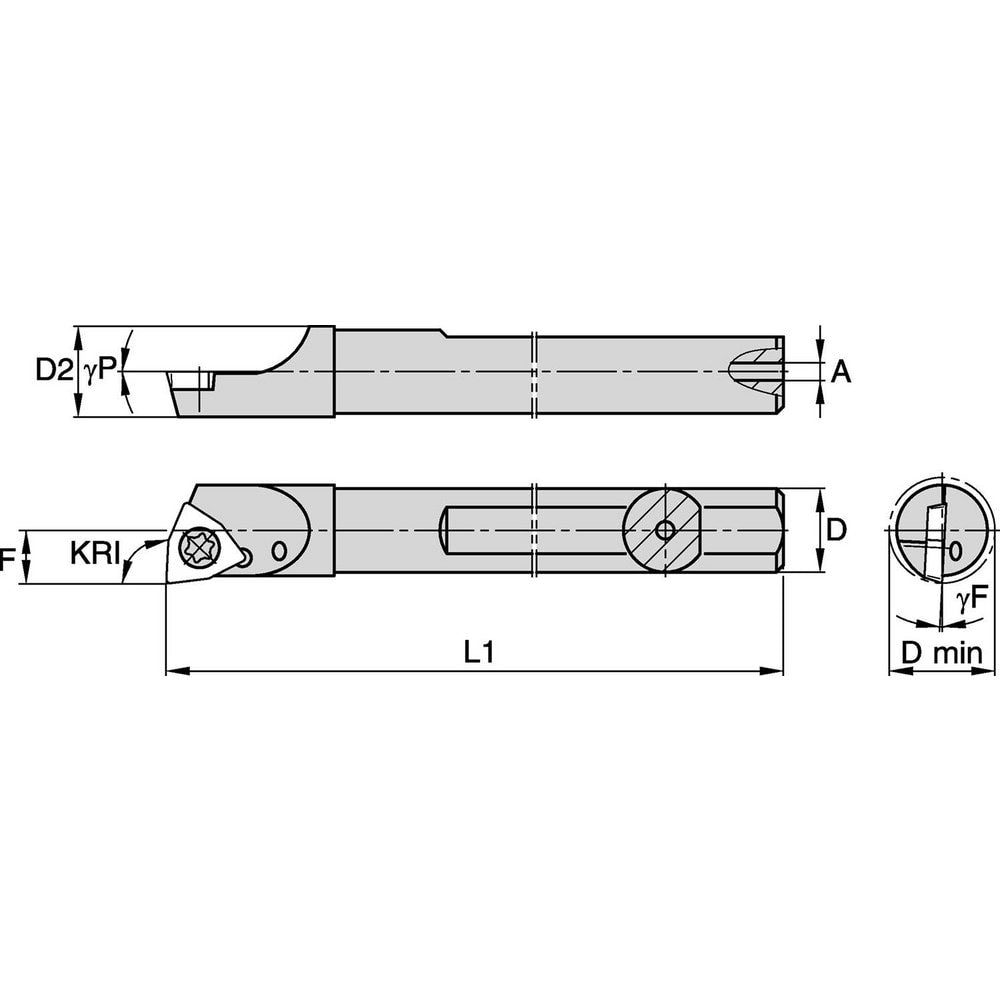

Product Specifications
| Minimum Bore Diameter (mm) | 6.780 |
| Maximum Bore Depth (mm) | 18.00 |
| Toolholder Style | W6100 |
| Tool Material | Steel |
| Shank Diameter (mm) | 6.0000 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 101.6000 |
| Compatible Insert Size Code | WP..S30104 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Trigon |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Rake Angle | -3.000 |
| Lead Angle | 93.000 |
| Series | GSBMW |
| Insert Inscribed Circle (Inch) | 3/16 |
| Compatible Insert Thickness (Decimal Inch) | 0.0625 |
| Compatible Insert Thickness (mm) | 1.59 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (mm) | 6.43 |
| Center to Cutting Edge (mm) | 3.43 |
| Primary Workpiece Material | Universal |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Thickness (Decimal Inch) | 0.0625 |
| Insert Thickness (Inch) | 1/16 |
| Coolant Hole Diameter (mm) | 1.02 |
| Number of Inserts Included in Order | 0 |
| Manufacturers Catalog Number | GSBMW61003R |
| Radial Rake | 0 |
| Neck Diameter (mm) | 6.210 |
| Coolant Through | Yes |
