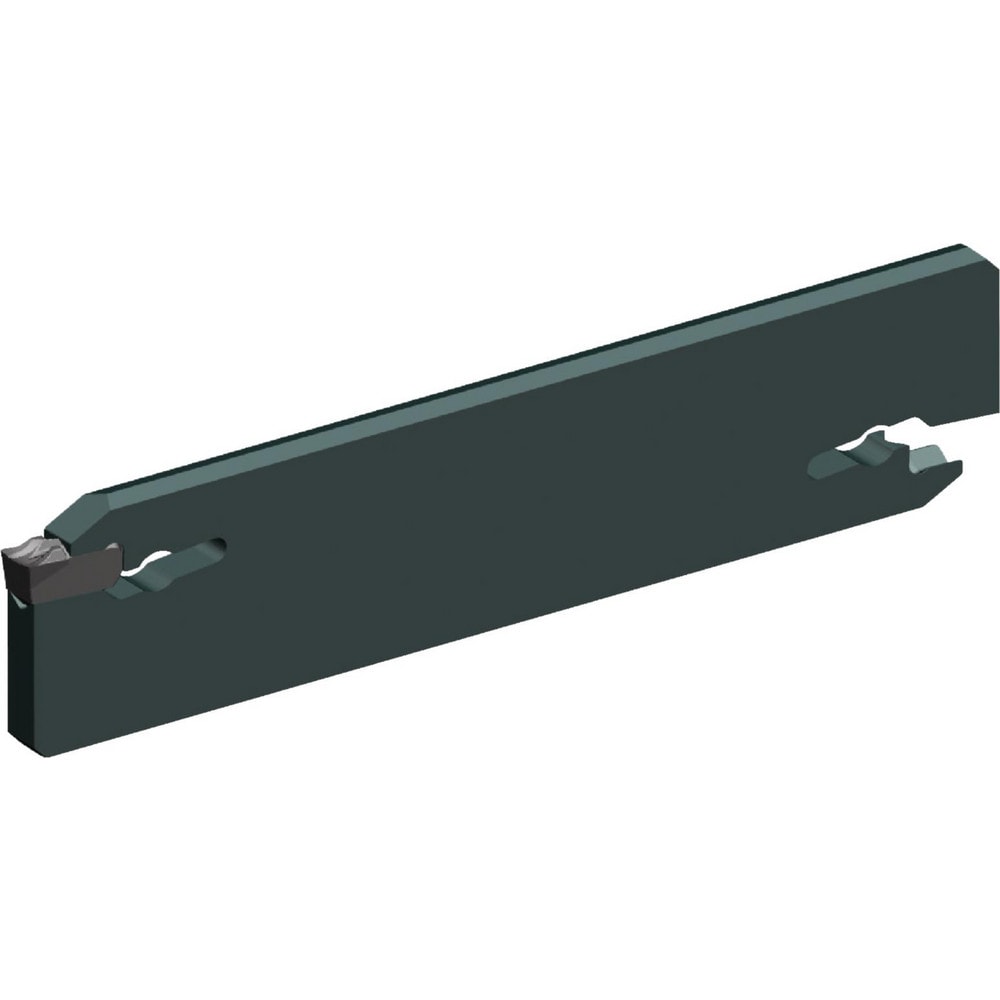

Brand: Widia / Part #: 6499212
Item #: 32900490
Brand: Widia
Model #: 6499212
Product Specifications
| End Type | Double-Ended |
| Cutting Direction | Neutral |
| Hand | Neutral |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0225 |
| Blade Width (Decimal Inch) | 0.0650 |
| Blade Width (mm) | 1.65 |
| Blade Overall Length (Decimal Inch) | 4.3407 |
| Blade Overall Length (mm) | 110.25 |
| Blade Style | WGC |
| Compatible Insert Style | WGC |
| Compatible Insert Size Code | 2 |
| Tool Material | Steel |
| Insert Holding Method | Spring Clamp |
| Maximum Workpiece Diameter (mm) | 60.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 2.3624 |
| Series | WGC |
| Insert Style | WGC |
| Cutting Tool Application | Grooving; Cut-Off |
| Primary Workpiece Material | Universal |
| Insert Seat Size | 2 |
| Maximum Depth of Cut (Decimal Inch) | 1.1812 |
| Maximum Depth of Cut (mm) | 30.00 |
| Minimum Workpiece Diameter (Decimal Inch) | 0.0000 |
| Cutting Height (mm) | 21.45 |
| Cutting Height (Decimal Inch) | 0.8445 |
| Minimum Insert Width (Decimal Inch) | 0.0787 |
| Minimum Insert Width (mm) | 2.00 |
| Maximum Insert Width (mm) | 2.99 |
| Maximum Insert Width (Decimal Inch) | 0.1177 |
| Manufacturers Catalog Number | WGCBSN26J0230 |
