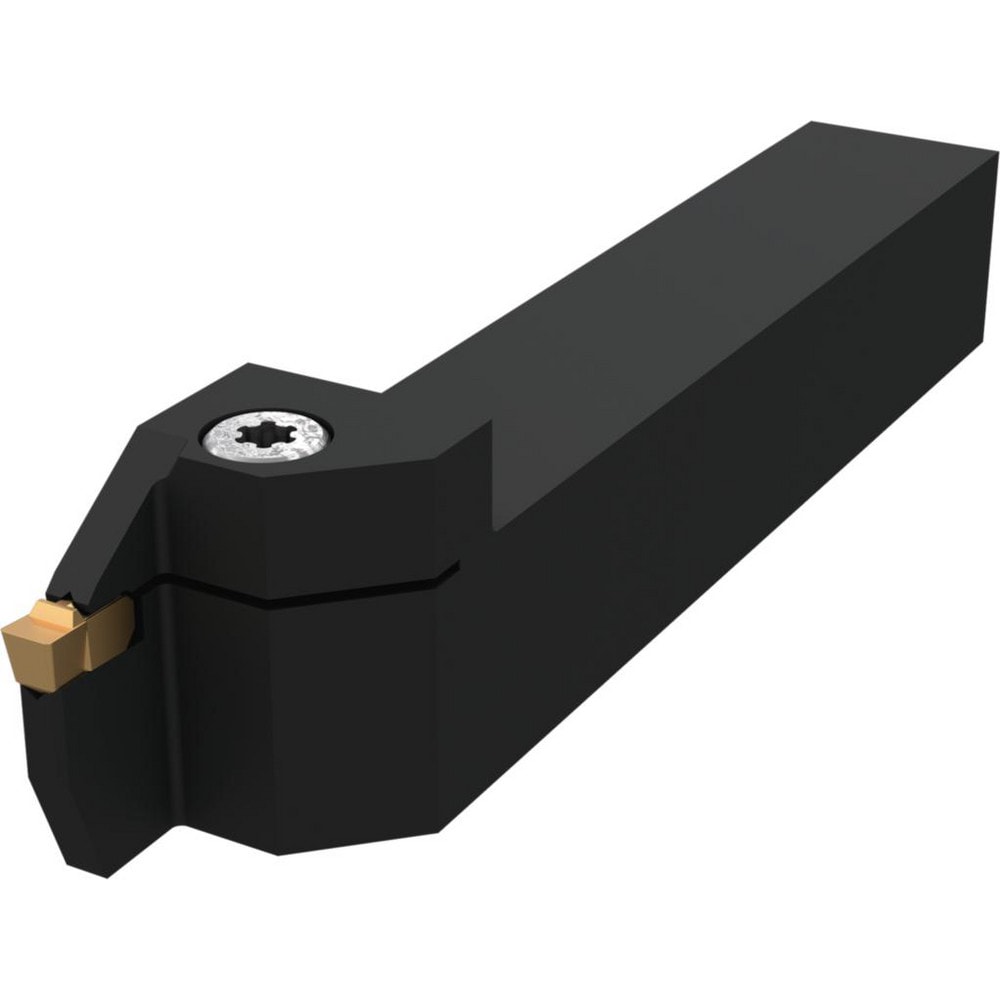

Brand: Widia / Part #: 6949415
Item #: 98017015
Brand: Widia
Model #: 6949415
Product Specifications
| Internal or External | External |
| Maximum Depth of Cut (mm) | 8.00 |
| Hand of Holder | Right Hand |
| Maximum Groove Width (mm) | 2.00 |
| Minimum Groove Width (mm) | 2.00 |
| Toolholder Style | WGCSM |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 0200 |
| Insert Compatibility | WG0200M02P02 |
| Shank Height (mm) | 16.00 |
| Shank Length (mm) | 104.500 |
| Shank Width/Diameter (mm) | 16.00 |
| Series | WGCSM |
| Overall Length (mm) | 127.5000 |
| Cutting Tool Application | Grooving; Facing; Cut-Off; Turning |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6335 |
| Head Height (mm) | 23.000 |
| Head Length (mm) | 23.00 |
| Primary Workpiece Material | Universal |
| Insert Seat Size | 2.0 |
| Coolant Through | No |
