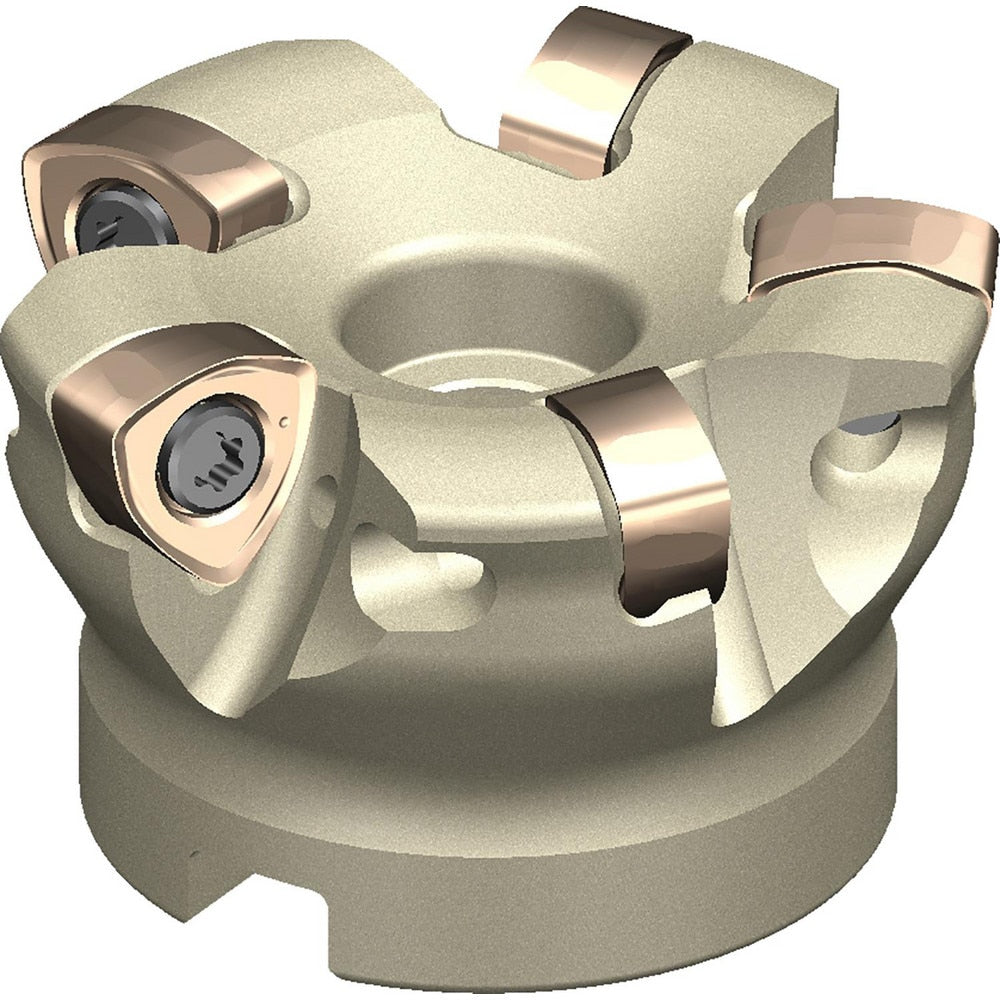

Brand: Sumitomo / Part #: 2200AXS
Item #: 68301381
Brand: Sumitomo
Model #: 2200AXS
Product Specifications
| Cutting Diameter (mm) | 125.00 |
| Minimum Cutting Diameter (mm) | 3.00 |
| Maximum Cutting Diameter (mm) | 125.00 |
| Maximum Depth of Cut (mm) | 3.00 |
| Arbor Hole Diameter (mm) | 40.00 |
| Compatible Insert Size Code | 08 |
| Maximum Ramping Angle | 0 |
| Cutter Style | DMSW |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | DMSW |
| Keyway Width (mm) | 16.40 |
| Complete Insert Compatibility | WNMU08 |
| Manufacturers Catalog Number | DMSW08125RS08 |
| Style | DMSW |
| Number Of Cutter Inserts | 8 |
| Number Of Flutes | 8 |
| Coolant Through | Yes |
