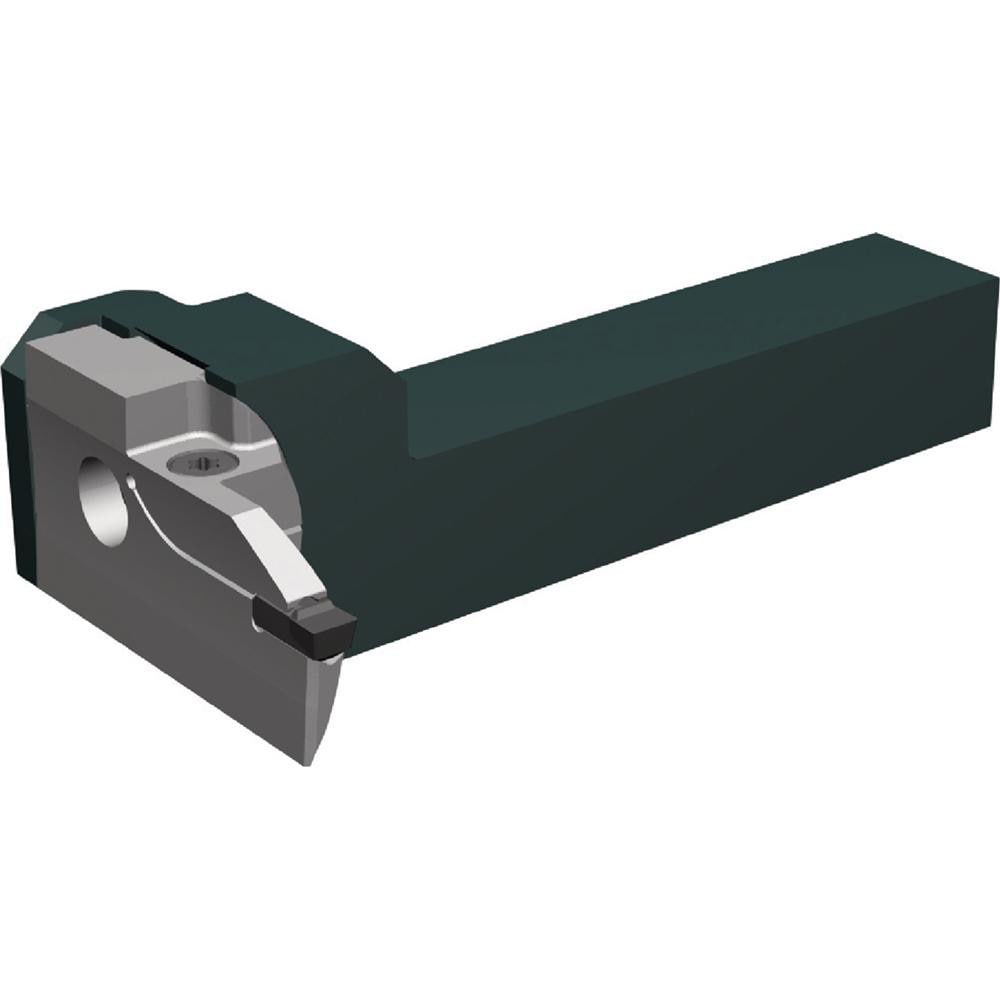

Brand: Widia / Part #: 3538801
Item #: 34039537
Brand: Widia
Model #: 3538801
Product Specifications
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Insert Seat Size | 3; 4; 6 |
| Hand of Holder | Left Hand |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (mm) | 25.40 |
| Toolholder Style | 235 |
| Maximum Groove Width (Decimal Inch) | 0.2500 |
| Insert Holding Method | Clamp |
| Insert Compatibility | WGC |
| Compatible Insert Size Code | 3; 4; 6 |
| Shank Width/Diameter (Decimal Inch) | 1.0600 |
| Shank Height (Inch) | 1-1/4 |
| Shank Height (Decimal Inch) | 1.2500 |
| Series | Ranger |
| Shank Length (Decimal Inch) | 4.4750 |
| Overall Length (Decimal Inch) | 5.9630 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving |
| Head Length (Decimal Inch) | 1.4880 |
| Primary Workpiece Material | Universal |
| Vibration Dampening | No |
| Maximum Groove Outside Diameter (mm) | 406.00 |
| Maximum Groove Outside Diameter (Decimal Inch) | 16.0000 |
| Minimum Axial Groove Inside Diameter(mm) | 57.2000 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 2.2500 |
| Manufacturers Catalog Number | 235108 |
| Toolholder Material | Steel |
| Insert Hand | Neutral |
| Complete Insert Compatibility | WGC06; WGC04; WGC02 |
| Number of Inserts Included in Order | 0 |
| Coolant Through | No |
