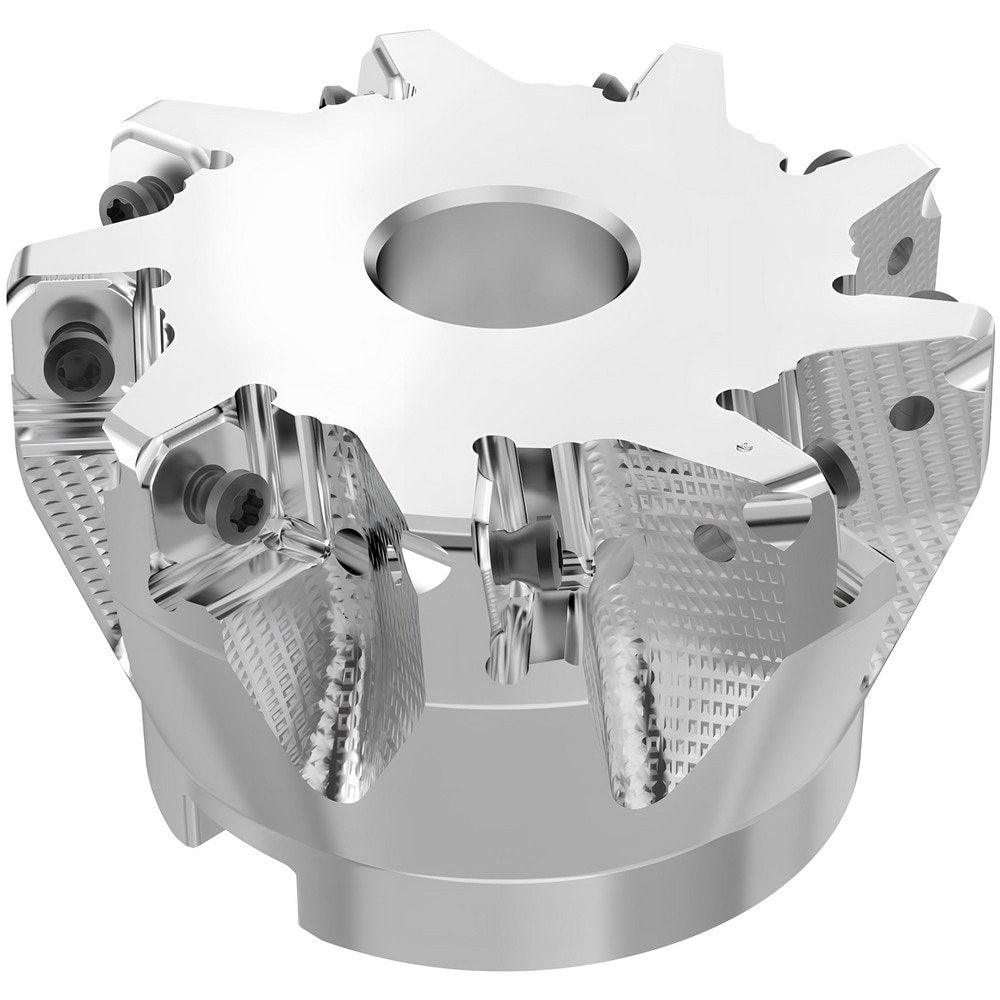

Brand: Seco / Part #: 10134780
Item #: 40063596
Brand: Seco
Model #: 10134780
Product Specifications
| Minimum Cutting Diameter (mm) | 80.00 |
| Maximum Cutting Diameter (mm) | 81.16 |
| Maximum Depth of Cut (mm) | 9.00 |
| Arbor Hole Diameter (mm) | 27.00 |
| Lead Angle | 88.000 |
| Compatible Insert Size Code | 12 |
| Cutter Style | R220.88 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Rake Angle | -8 |
| Series | R220.88 |
| Hub Diameter (mm) | 62.000 |
| Keyway Width (mm) | 12.40 |
| Overall Height (Mm - 5 Decimals) | 50.00000 |
| Pitch Type | Close |
| Maximum RPM | 9900.000 |
| Tool Application | Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | SN.U1204 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | R220.88-0080-12-9SAP |
| Number Of Cutter Inserts | 9 |
| Coolant Through | Yes |
| Number Of Flutes | 9 |
