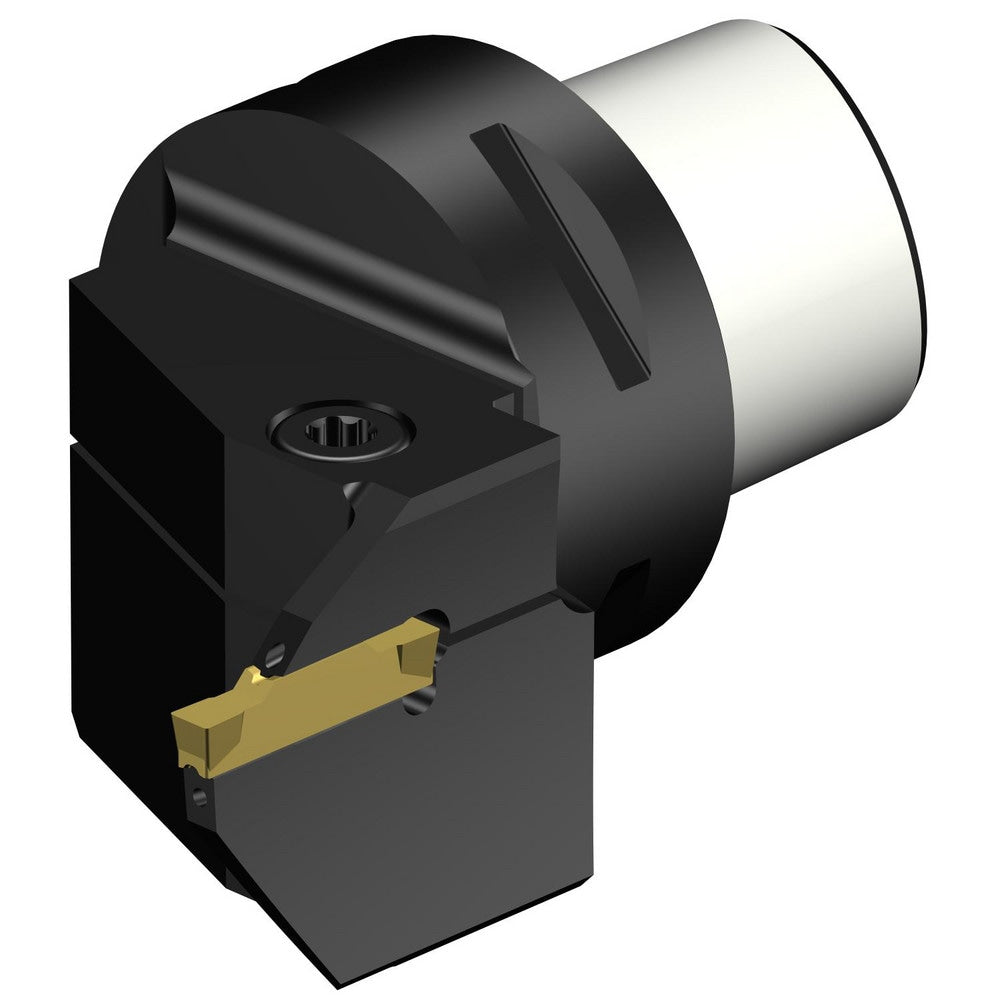

Brand: Sandvik Coromant / Part #: 8381871
Item #: 67621573
Brand: Sandvik Coromant
Model #: 8381871
Product Specifications
| System Size | C5 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Maximum Depth of Cut (mm) | 18.00 |
| Minimum Groove Width (Decimal Inch) | 5.1969 |
| Minimum Groove Width (mm) | 132.00 |
| Maximum Groove Width (Decimal Inch) | 9.0551 |
| Maximum Groove Width (mm) | 230.00 |
| Cutting Direction | Right Hand |
| Modular Head Style | Cutting Head |
| Compatible Insert Style | C2I-H2-0400 |
| Compatible Insert Size Code | H |
| Series | CoroCut? 2 |
| Center to Cutting Edge (mm) | 33.00 |
| Center to Cutting Edge (Decimal Inch) | 1.2992 |
| Blade Style Compatibility | None |
| Complete Insert Compatibility | CoroCut 2 -size H (C2I-H2-0400-) |
| Head Length Projection (Decimal Inch) | 2.5591 |
| Coolant Through | Yes |
| Head Length Projection (mm) | 65.00 |
