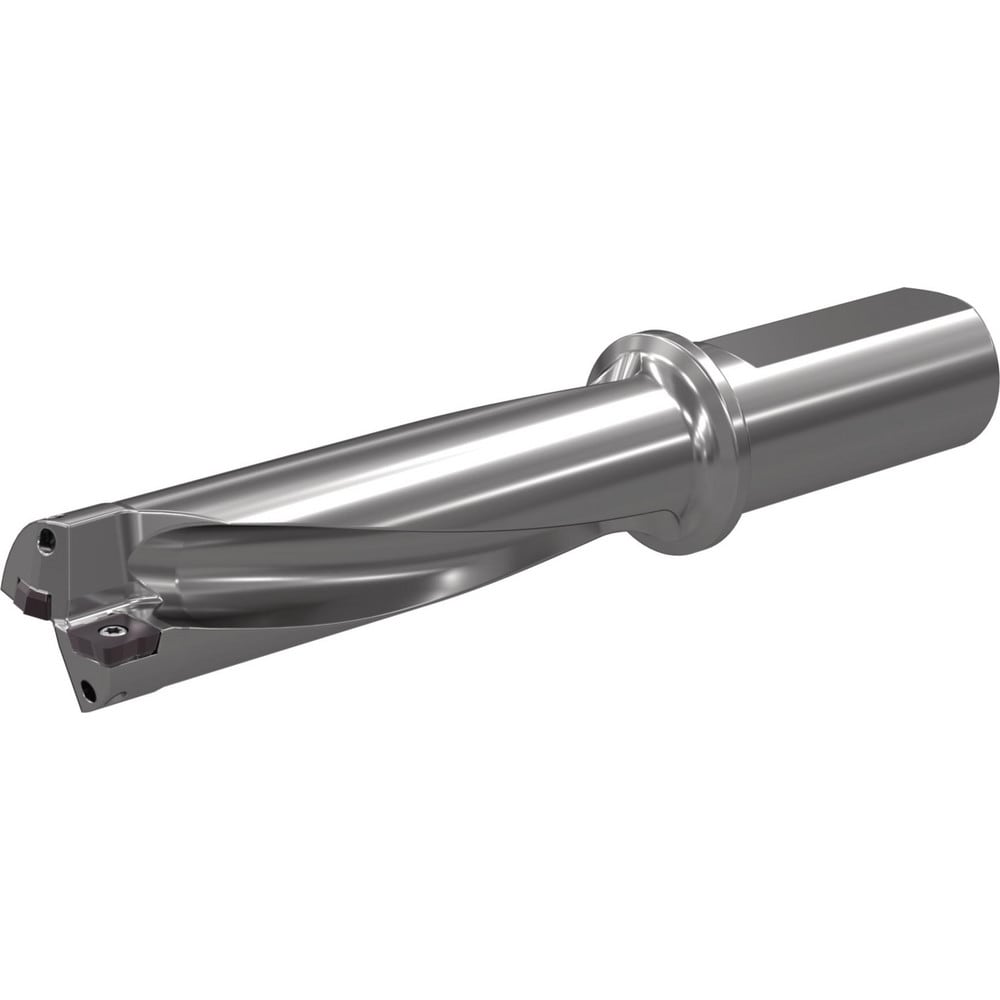

Brand: Widia / Part #: 5578830

Brand: Widia / Part #: 5578830


Item #: 90607730
Brand: Widia
Model #: 5578830

Product Specifications

Maximum Drill Depth 2.3910 in
Drill Depth by Diameter Ratio 3xD
Maximum Depth of Cut (mm) 60.72
Shank Type Weldon Flat
Shank Diameter (mm) 25.0000
Shank Diameter (Decimal Inch) 0.9843
Cutting Direction Right Hand
Drill Body Length to Flange (mm) 86.00
Toolholder Style TCF
Nose Diameter (Mm) ( - 2 Decimals) 20.00
Overall Length (mm) 142.7200
Overall Length 142.72
Through Coolant Yes
Series Top Cut 4
Flute Length (mm) 82.70
Shank Length (mm) 56.000
Gage Length (mm) 86.72
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Number of Shank Flats 1
Flute Type Variable Index
Maximum Cutting Diameter (mm) 20.00
Projection (mm) 86.720
Number Of Flutes 2
Coolant Through Yes
$376.95

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
