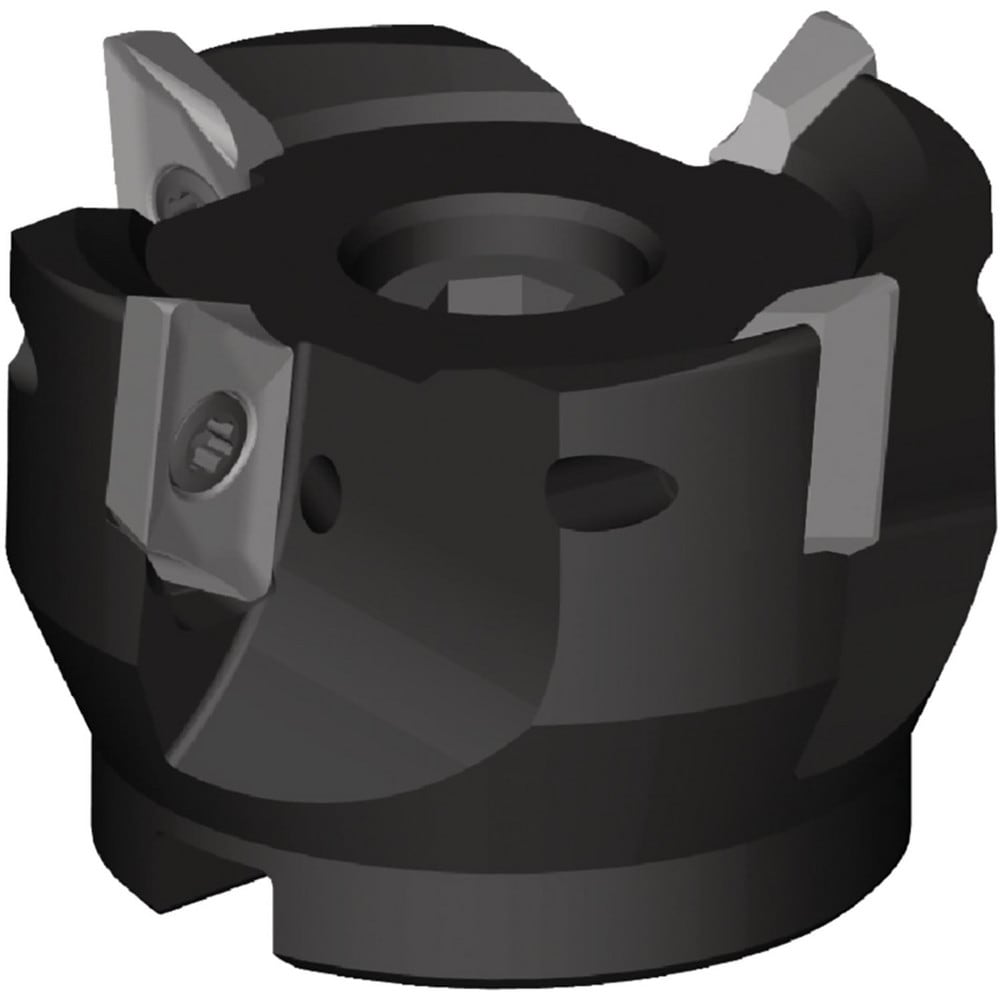

Brand: Widia / Part #: 6425384
Item #: 09968827
Brand: Widia
Model #: 6425384
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.6299 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Compatible Insert Size Code | XD..16 |
| Maximum Ramping Angle | 3.7 |
| Cutter Style | VHSC |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive |
| Series | VHSC |
| Maximum Body Diameter (Decimal Inch) | 0.8661 |
| Overall Height (Decimal Inch) | 1.9685 |
| Keyway Width (mm) | 12.95 |
| Hub Diameter (Decimal Inch) | 2.4409 |
| Maximum RPM | 23000.000 |
| Tool Application | Facing; Ramping; Shouldering; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Primary Workpiece Material Code | K; N |
| Number of Adjustable Pockets | 0 |
| ISO Number | VHSC400Z05S125XD16 |
| Complete Insert Compatibility | XD..16 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | VHSC400Z05S125XD16 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
