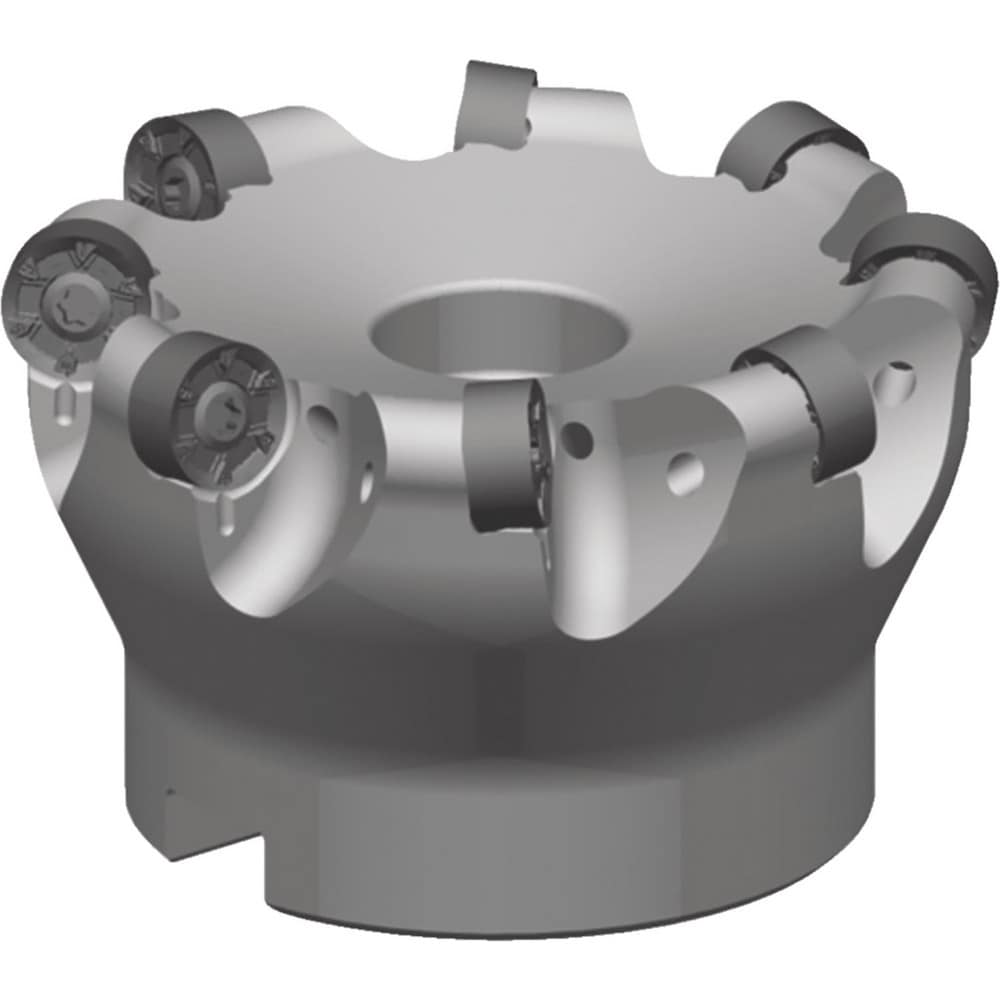

Brand: Widia / Part #: 5283524
Item #: 97196067
Brand: Widia
Model #: 5283524
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.3701 |
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.1563 |
| Arbor Hole Diameter (mm) | 1.00 |
| Compatible Insert Size Code | RN_J1605M0_M_ |
| Maximum Ramping Angle | 0.33 degree |
| Cutter Style | M200 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | M200 |
| Hub Diameter (Decimal Inch) | 2.1890 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Maximum RPM | 20100 |
| Tool Application | Profiling; Pocketing; Milling; Slotting; Face Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Super-Alloys & Titanium; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Number Of Cutter Inserts | 7 |
| Coolant Through | Yes |
