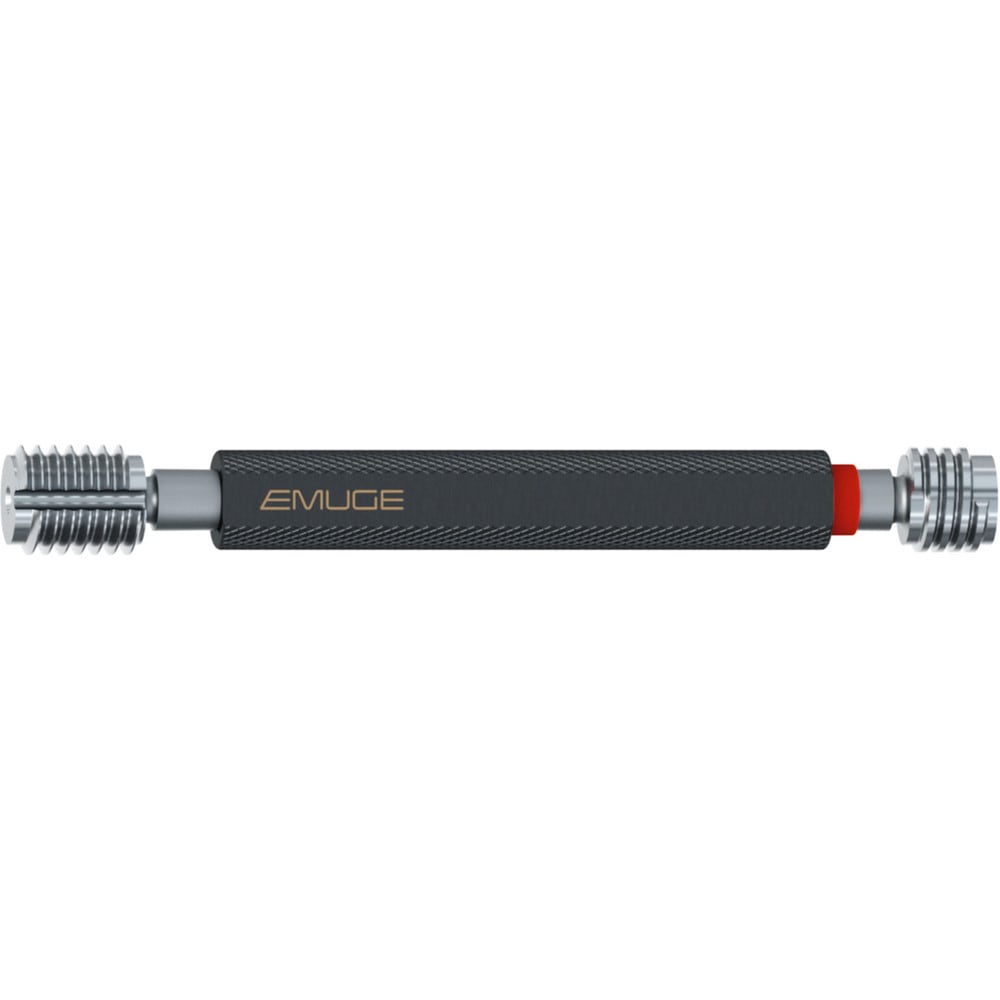

Plug Thread Go/No Go Gages; Go/No Go: Go, No Go; Thread Size: #8-36; Material: Steel; Classification: 3B; Go Pitch Diameter (Inch): 0.1460; Go Pitch Diameter (mm): 3.7080; No Go Pitch Diameter (mm): 3.7770; No Go Pitch Diameter (Decimal Inch): 0.14870
Item #: 02814499
Brand: Emuge
Model #: L0100160.5040
Product Specifications
| Go/No Go | Go; No Go |
| Thread Size | #8-36 |
| Material | Steel |
| Classification | 3B |
| Go Pitch Diameter (Inch) | 0.1460 |
| Go Pitch Diameter (mm) | 3.7080 |
| No Go Pitch Diameter (mm) | 3.7770 |
| No Go Pitch Diameter (Decimal Inch) | 0.14870 |
| Handle Size | 0 |
| Handle Included | Yes |
| Overall Length (Decimal Inch) | 2.7750 |
| Overall Length (mm) | 70.5000 |
| Thread Direction | Left Hand |
| Calibrated | Yes |
| Traceability Certification Included | Yes |
| Standards | Gauge dimensions according to ANSI/ASME B1.19; NIST; DIN2280 |
| Coating/Finish | Bright |
| Single Or Double End | Double |
| Thread Standard | UNF |
| UNSPSC Code | 41111619 |
