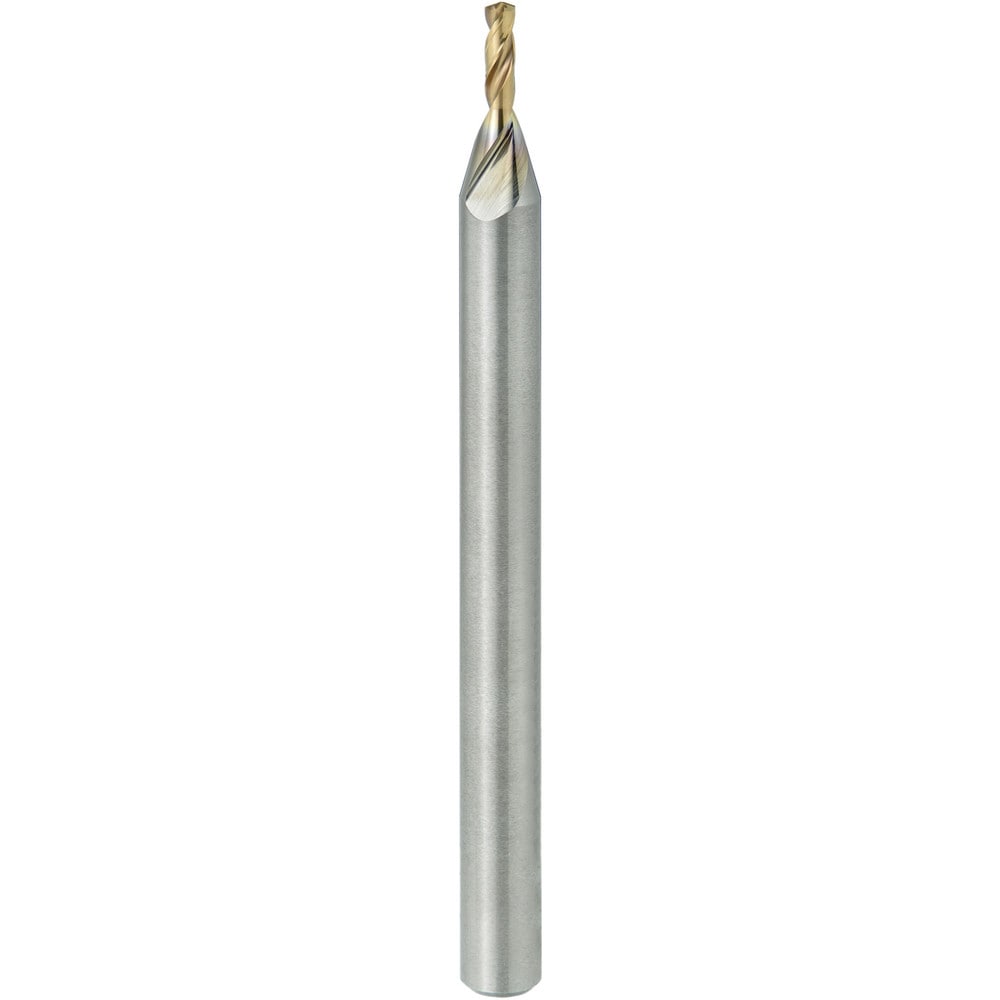

Micro Drill Bit: 1.60 mm Dia, (0.0630"), 141 deg, Solid Carbide
Item #: 04740916
Brand: Mitsubishi
Model #: 10631478
Product Specifications
| Drill Bit Size (mm) | 1.60 |
| Drill Bit Size (Decimal Inch) | 0.0630 |
| Tool Material | Solid Carbide |
| Flute Length (Decimal Inch) | 11.1000 |
| Flute Length (mm) | 0.44 |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Drill Point Angle | 141 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 3.50 |
| Maximum Drilling Depth (Decimal Inch) | 0.1378 |
| Number Of Flutes | 2 |
| Series | DVAS |
| Overall Length (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 50.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | X-Thinning |
| Tool Application | Very Small Hole Drilling |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Hardened Steels; Aluminum; Brass; Carbon Steel; Aluminum Alloy; Steel; Iron Alloy; Bronze Alloy; Stainless Steel; Cast Iron; Titanium; Superalloys & Titanium; Copper; Titanium Alloy; Hardened Steel |
| Secondary Workpiece Material Code | P; S; K; M; N |
| Standards | ISO |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Shank Diameter (mm) | 4.00 |
| Shank Length (Decimal Inch) | 1.5906 |
| Shank Length (mm) | 40.40 |
| Flute By Diameter Ratio | 2xD |
| UNSPSC Code | 23241600 |
