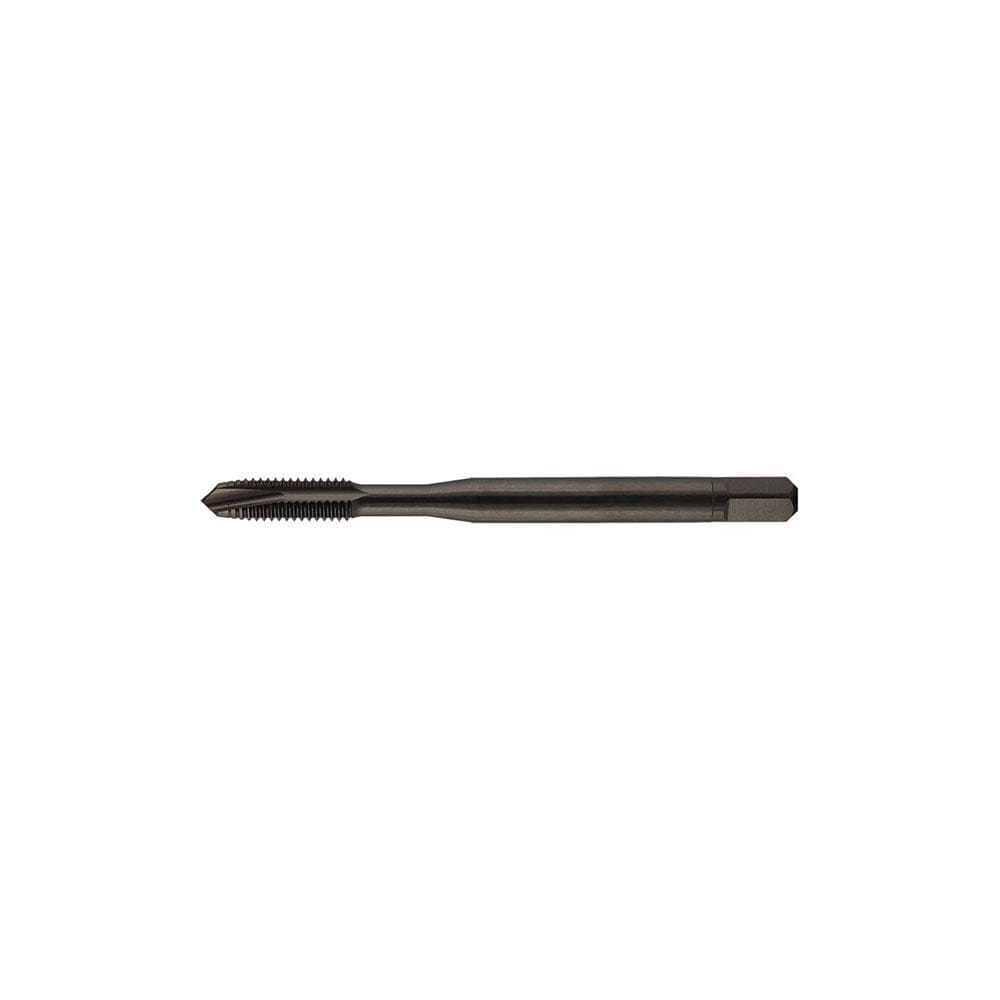

Spiral Point Tap: 7/16-20 UNF, 3 Flutes, Plug Chamfer, 2B Class of Fit, HSS, Oxide Coated
Item #: 13009436
Brand: Yamawa
Model #: 382650
Product Specifications
| Thread Size (Inch) | 7/16-20 |
| Thread Standard | UNF |
| Chamfer | Plug |
| Material | HSS |
| Thread Limit | H5 |
| Class Of Fit | 2B |
| Coating/Finish | Oxide |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Material Application | Stainless Steel |
| Oversize | No |
| Interrupted Thread | No |
| Threads per Inch | 20 |
| Overall Length (Inch) | 3-5/32 |
| Thread Pitch (Decimal Inch) | 0.05 |
| Overall Length (Decimal Inch) | 3.1563 |
| Thread Length (Decimal Inch) | 0.8660 |
| Shank Diameter (Decimal Inch) | 0.3230 |
| Application | Through-Hole Threading |
| Neck Length (Decimal Inch) | 1.4375 |
| Neck Length (Inch) | 1-7/16 |
| Measurement Type | Fractional Inch |
| Series | ZELX SS |
| Style | Spiral Point |
| UNSPSC Code | 23241600 |
