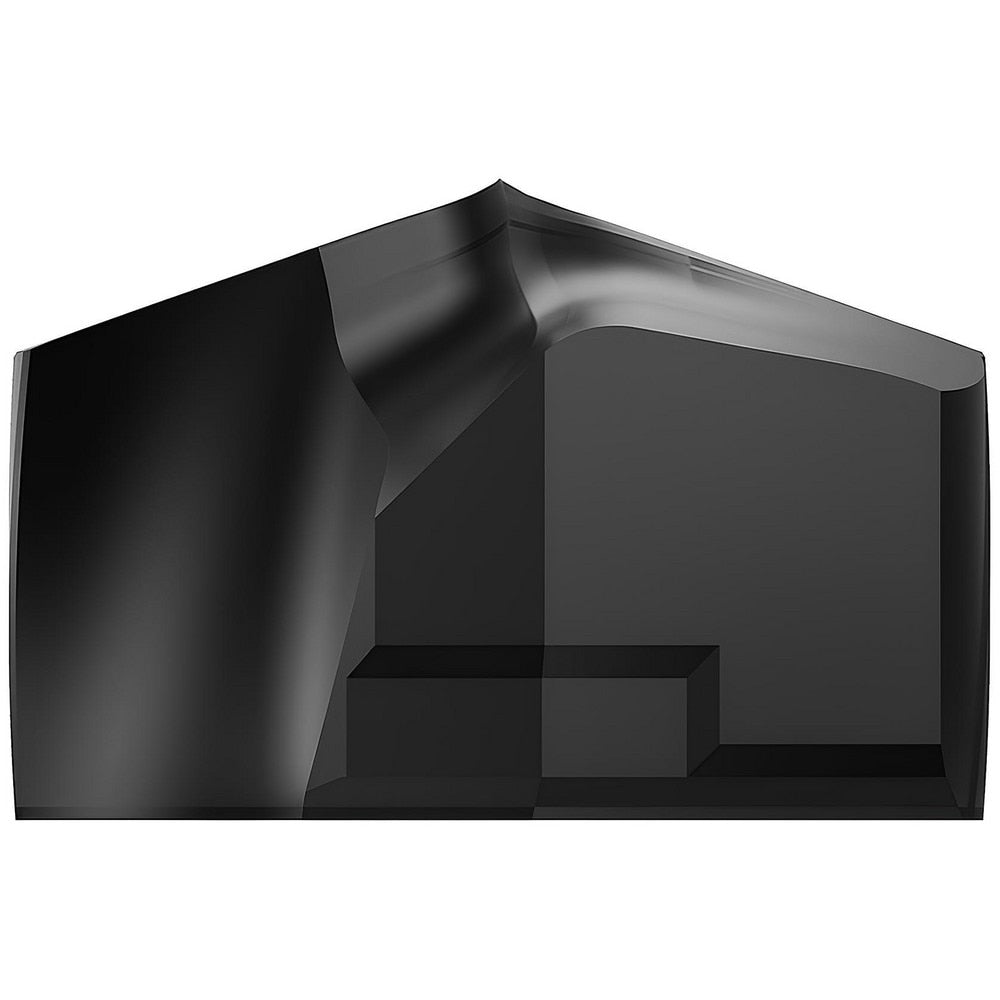

Replaceable Drill Tips: KSEM0563HP KC7315, 0.5626" Dia, 14.29 mm Dia, 140 deg Point, KC7315
Item #: 00693689
Brand: Kennametal
Model #: 2047400
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.5626 |
| Cutting Diameter (mm) | 14.29 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | KC7315 |
| Material Grade | Fine Grain |
| Series | KSEM |
| Coating Process | PVD |
| Insert Geometry | HP |
| Insert Seat Size | B |
| Functional Length (Decimal Inch) | 0.2815 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Height (Decimal Inch) | 0.2815 |
| Overall Length/Projection (Decimal Inch) | 0.2815 |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Clamp |
| ISO Number | KSEM0563HP |
| Coolant Through | No |
| Flute Length (mm) | 7.00 |
| Point Type | Standard |
| Spiral Type | Regular Spiral |
| Height (Inch) | 9/32 |
| Style | KSEM |
| UNSPSC Code | 23242105 |
| Applications | Drilling; ToolDimensions:2flute/2margin/coolant; Drilling:InclinedExit; Drilling:StackedPlates |
| Coating/Finish | TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
