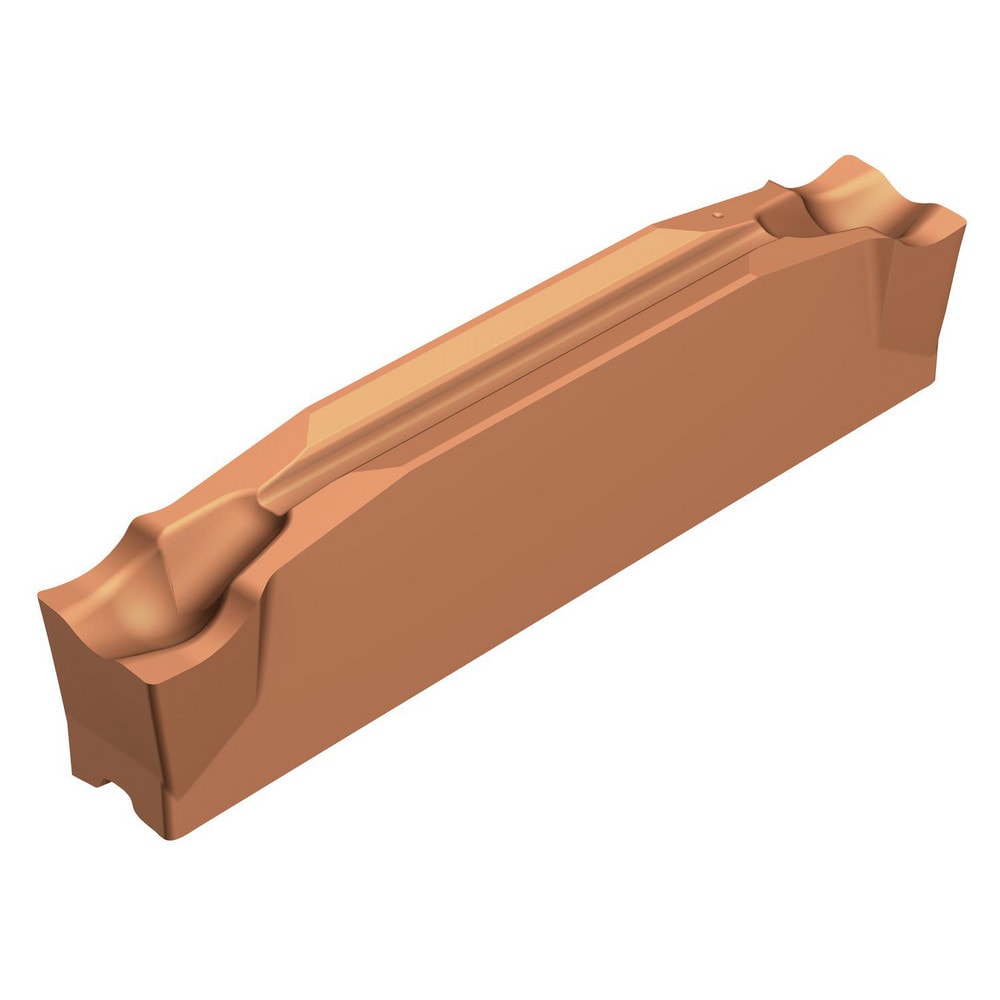

Cutoff Insert: C2IG2L03000502CM 1225, Carbide, 3.00 mm Cutting Width, 0.1181" Cutting Width
Item #: 01127943
Brand: Sandvik Coromant
Model #: 8194214
Product Specifications
| Insert Style | C2I |
| Insert Size Code | G2 |
| Insert Material | Carbide |
| Manufacturer Grade | 1225 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Cutting Width (mm) | 3.00 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Left Hand |
| Insert Hand | Left Hand |
| Lead Angle | 0 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Chipbreaker | CM |
| Multi-use Tool | No |
| Cutting Tool Application | Cut-off; Parting |
| Series | CoroCut 2 |
| Coating Process | PVD |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | C2I-G2L-0300-0502-CM1225 |
| Cutting Height (mm) | 18.89 |
| Cutting Height (Decimal Inch) | 0.7437 |
| Manufacturers Catalog Number | C2I-G2L-0300-0502-CM1225 |
| Insert Seat Size | G |
| Cutting Direction | Left Hand |
| Coating/Finish | TiAlN/TiAlSiN/TiSiN |
| UNSPSC Code | 23242105 |
