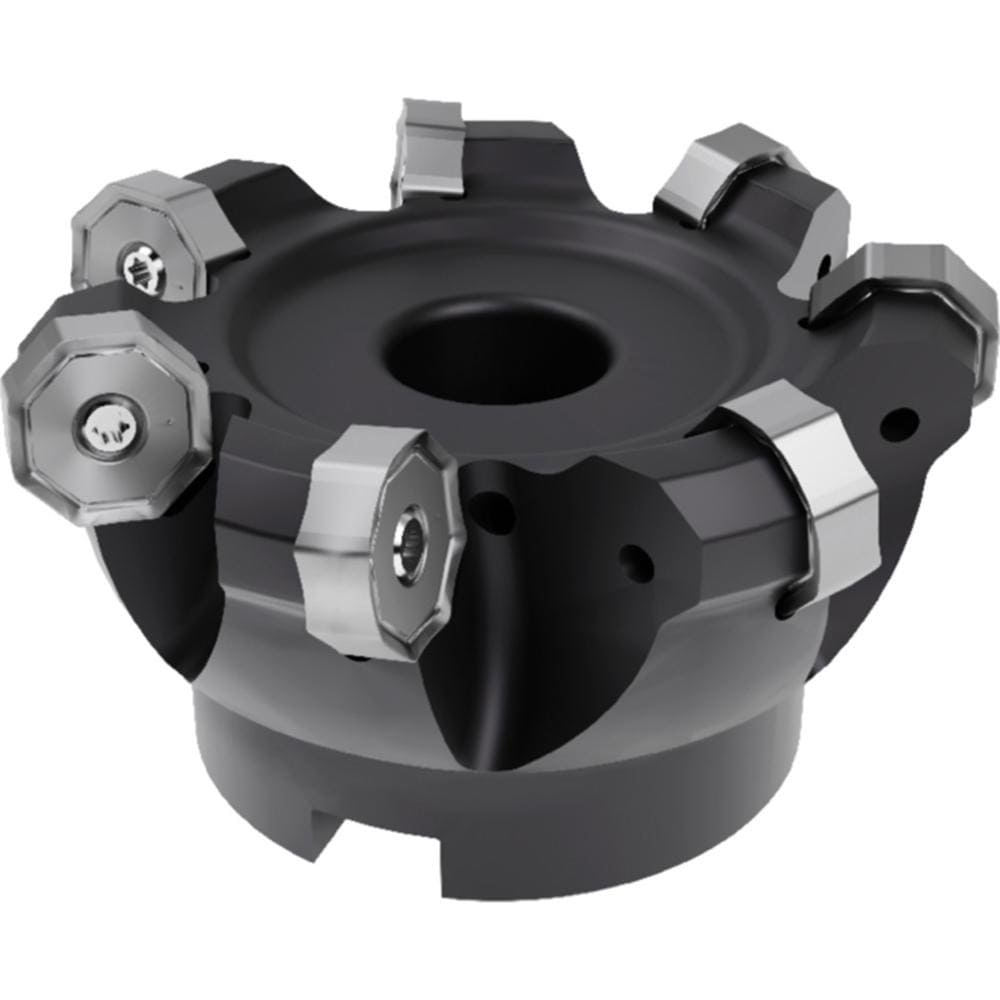

Brand: Widia / Part #: 4002798
Item #: 99558652
Brand: Widia
Model #: 4002798
Product Specifications
| Minimum Cutting Diameter (mm) | 160.00 |
| Maximum Cutting Diameter (mm) | 170.73 |
| Maximum Depth of Cut (mm) | 3.70 |
| Arbor Hole Diameter (Decimal Inch) | 1.5753 |
| Lead Angle | 43.000 |
| Compatible Insert Size Code | 060512 |
| Cutter Style | M1600 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Series | M1600 |
| Hub Diameter (mm) | 90.000 |
| Overall Height (Mm - 5 Decimals) | 63.00000 |
| Maximum Body Diameter (Decimal Inch) | 6.5016 |
| Maximum Body Diameter (mm) | 165.14 |
| Tool Application | Chamfering; Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | ONGX |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | M1600D160Z13S40ON06 |
| Number Of Cutter Inserts | 13 |
| Coolant Through | Yes |
| Number Of Flutes | 13 |
