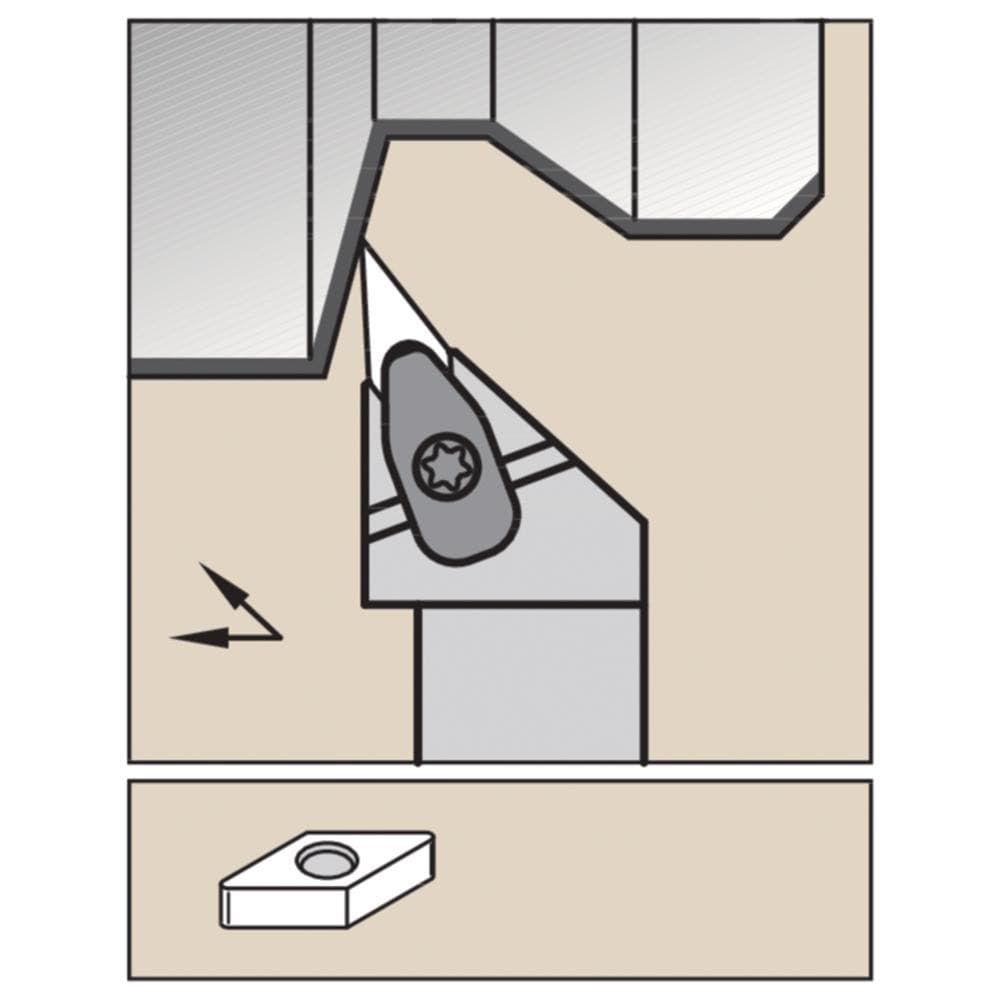

Brand: Widia / Part #: 5697769

Brand: Widia / Part #: 5697769


Item #: 99553919
Brand: Widia
Model #: 5697769

Product Specifications

Cutting Direction Left Hand
Hand of Holder Left Hand
Compatible Insert Size Code 33.
Toolholder Style DVJNL
Rake Negative
Rake Angle -9 (Axial);-5 (Radial)
Multi-use Tool Yes
Lead Angle 93.000
Insert Holding Method Clamp
Shank Width (Decimal Inch) 1.0000
Shank Width (Inch) 1
Insert Compatibility VN..33.
Shank Height (Decimal Inch) 1.2500
Shank Height (Inch) 1-1/4
Series DVJN
Overall Length (Decimal Inch) 6.0000
Overall Length (Inch) 6
Cutting Tool Application Copying; Turning
Head Length (Decimal Inch) 1.8200
Back of Bar to Cutting Edge (Inch) 1-1/4
Back of Bar to Cutting Edge (Decimal Inch) 1.2500
Primary Workpiece Material Universal
Insert Inscribed Circle (Decimal Inch) 0.3750
Insert Inscribed Circle (Inch) 3/8
Insert Width (Inch) 3/8
Insert Width (Decimal Inch) 0.3750
Toolholder Material Steel
ISO Number DVJNL853DKC3
Complete Insert Compatibility VN..
Coolant Through No
Insert Thickness (Decimal Inch) 0.1875
$109.42
