Brand: Widia / Part #: 3636543

Brand: Widia / Part #: 3636543


Item #: 97990824
Brand: Widia
Model #: 3636543

Product Specifications

Internal or External External

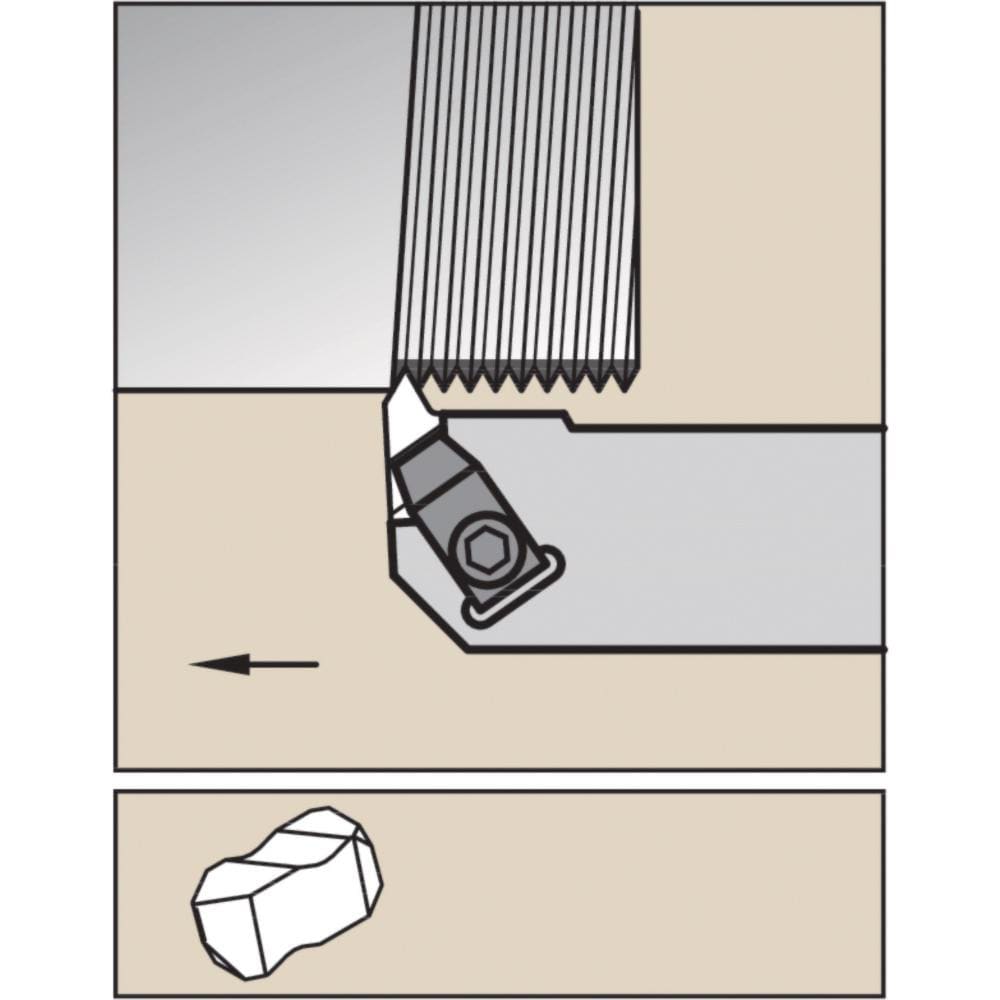

Toolholder Type External Grooving
Insert Seat Size 3
Hand of Holder Left Hand
Cutting Direction Left Hand
Maximum Depth of Cut (mm) 5.33
Minimum Groove Width (mm) 0.00
Maximum Groove Width (mm) 3.00
Toolholder Style NE
Insert Holding Method Clamp
Insert Compatibility N.3R
Compatible Insert Size Code 3
Shank Width/Diameter (mm) 25.00
Shank Height (mm) 129.25
Series NE
Shank Length (mm) 129.250
Overall Length (mm) 150.0000
Multi-use Tool Yes
Cutting Tool Application Grooving; Threading
Back of Bar to Cutting Edge (mm) 32.00
Head Height (mm) 20.000
Head Length (mm) 50.80
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Multi-Use Application Yes
Mount Type Shank
Manufacturers Catalog Number NEL2525M3
Toolholder Material Steel
Insert Hand Left Hand
Complete Insert Compatibility N.3R
Coolant Through No
Minimum Bore Diameter (mm) 0.000
Maximum Bore Depth (mm) 50.80
$104.66
