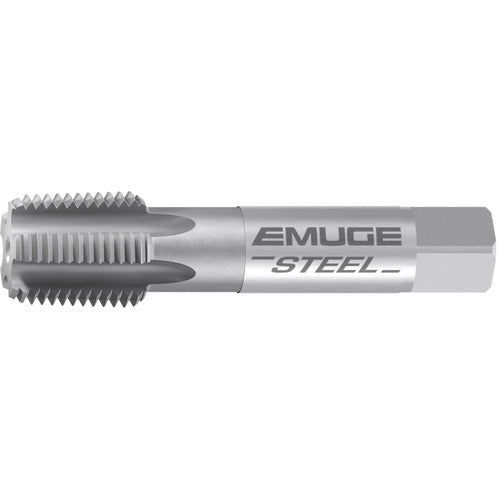

3/4-14 NPT REK.A Tap
Item #: ER4510442
Brand: EMUGE-FRANKEN
Model #: AW1810005768
| Product Specifications | |
|---|---|
| Tool Type | Pipe Tap |
| Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | 3/4″ |
| Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 14 |
| Applicable Material | Steel | Cast Iron | Aluminum / Non-Ferrous Materials |
| Thread Standard | NPT |
| Chamfer | 2P-3P |
| Flute Helix Angle (FHA) | 0 Degrees |
| Coating | Bright |
| Overall Length (OAL) | 3-1/4″ |
| Cutting Edge Material | HSSE |
| Thread Cutting Part Length (THL) | 1.38″ |
| Measurement Type | Fractional |
| Connection Diameter Machine Side (DCONMS) | 0.906″ |
| Standard | ANSI |
| Flute Type | Straight |
| Thread Size | 3/4″ - 14 |
