Brand: Widia / Part #: 3641668

Brand: Widia / Part #: 3641668


Item #: 97987424
Brand: Widia
Model #: 3641668

Product Specifications

Internal or External External

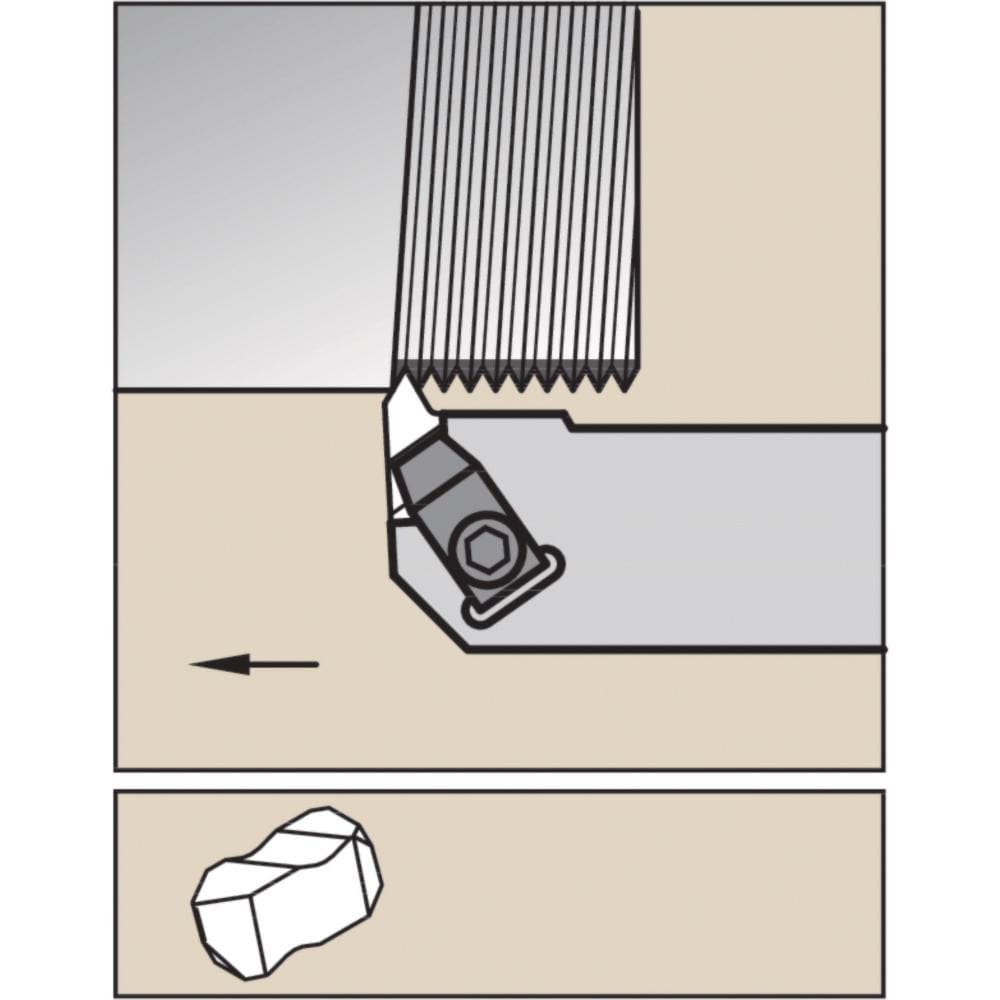

Toolholder Type External Grooving
Insert Seat Size 4
Hand of Holder Left Hand
Cutting Direction Left Hand
Maximum Depth of Cut (mm) 7.47
Minimum Groove Width (mm) 0.00
Maximum Groove Width (mm) 4.00
Toolholder Style NE
Insert Holding Method Clamp
Insert Compatibility N.4R
Compatible Insert Size Code 4
Shank Width/Diameter (mm) 25.00
Shank Height (mm) 127.25
Series NE
Shank Length (mm) 127.250
Overall Length (mm) 150.0000
Multi-use Tool Yes
Cutting Tool Application Grooving; Threading
Back of Bar to Cutting Edge (mm) 35.00
Head Height (mm) 25.000
Head Length (mm) 50.80
Primary Workpiece Material Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; H; K; M; N
Multi-Use Application Yes
Mount Type Shank
Manufacturers Catalog Number NEL2525M4
Toolholder Material Steel
Insert Hand Left Hand
Complete Insert Compatibility N.4R
Coolant Through No
Minimum Bore Diameter (mm) 0.000
Maximum Bore Depth (mm) 50.80
$104.48
