Brand: Widia / Part #: 2831441

Brand: Widia / Part #: 2831441


Item #: 02777910
Brand: Widia
Model #: 2831441

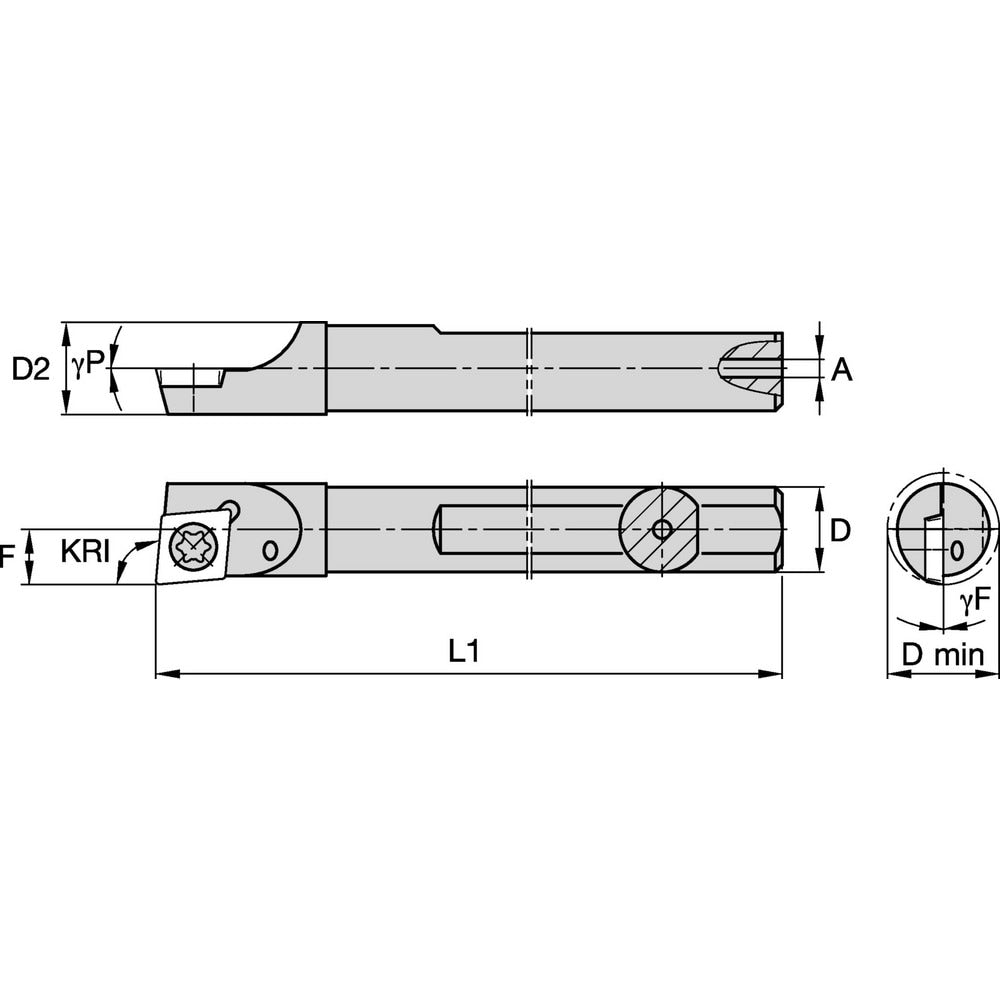

Product Specifications

Minimum Bore Diameter (mm) 5.790
Maximum Bore Depth (mm) 15.00
Toolholder Style CSBM
Tool Material Steel
Shank Diameter (mm) 5.0000
Hand of Holder Right Hand
Overall Length (mm) 63.5000
Compatible Insert Size Code CD..S4T002
Insert Holding Method Screw
Compatible Insert Shape Diamond
Insert Included No
Rake Positive
Cutting Direction Right Hand
Rake Angle 0.000
Lead Angle 95.000
Series CSBM
Insert Inscribed Circle (Inch) 5/32
Compatible Insert Thickness (Decimal Inch) 0.0400
Compatible Insert Thickness (mm) 1.02
Multi-use Tool Yes
Cutting Tool Application Boring
Back of Bar to Cutting Edge (mm) 5.45
Center to Cutting Edge (mm) 2.95
Primary Workpiece Material Universal
Multi-Use Application Boring
Number of Inserts Used on Toolholder 1
Insert Thickness (Decimal Inch) 0.0400
Coolant Hole Diameter (mm) 1.02
Number of Inserts Included in Order 0
Manufacturers Catalog Number CSBM5655R
Radial Rake 5
Neck Diameter (mm) 5.160
Coolant Through Yes
$107.89
