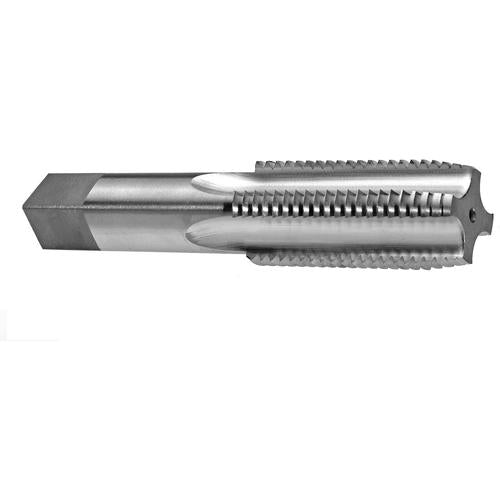

1-12 4FL H-4 LH PLUG TAPS 117
Item #: EP4080138
Brand: Reiff & Nestor
Model #: 80138
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1″ |
| Chamfer | Plug |
| Threads per Inch (TPI) | 12 |
| Coating | Bright |
| Thread Standard | NF |
| Drive Size (DRVS) | 0.6″ |
| Overall Length (OAL) | 5-1/8″ |
| Flute Type | Straight Flute |
| Thread Cutting Part Length (THL) | 2-1/2″ |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 0.6″ |
| Cutting Direction (HAND) | Left Hand |
| Flute Count (NOF) | 4 |
| Square Size | 2-1/2″ × 0.600″ |
| Flute Helix Angle (FHA) | 0 Degrees |
| Standard Pack Size | 3 |
| Cutting Edge Material | HSS |
| Series/List # | 117 |
| Thread Tolerance Class (TCTR) | H4 |
| Thread Size | 1″ - 12 |
| Tool Type | Hand Tap |
