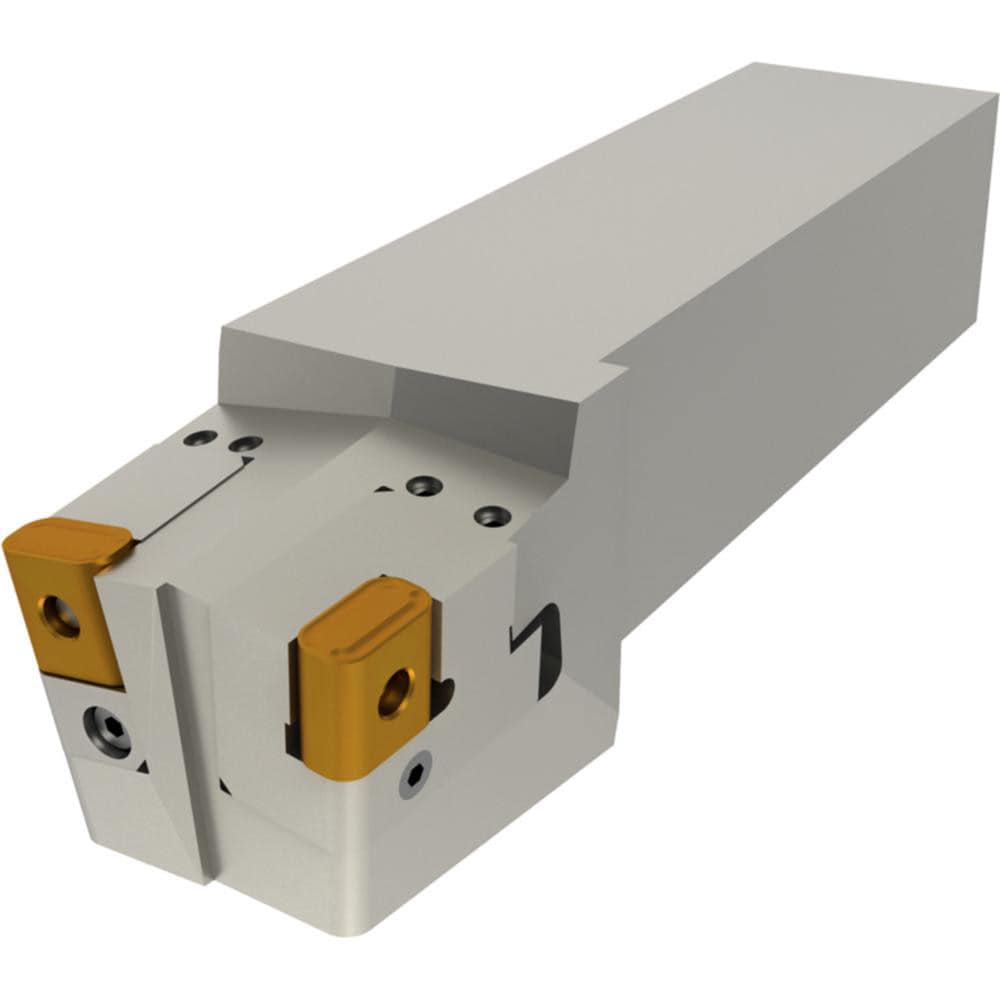

Brand: Widia / Part #: 2552321
Item #: 97326045
Brand: Widia
Model #: 2552321
Product Specifications
| Cutting Direction | Right Hand |
| Hand of Holder | Right Hand |
| Compatible Insert Size Code | 1919.. |
| Toolholder Style | 69391 |
| Rake | Negative |
| Rake Angle | 0 (Axial);0 (Radial) |
| Multi-use Tool | Yes |
| Lead Angle | 0.000 |
| Insert Holding Method | Pin |
| Insert Compatibility | LNUX1919.. |
| Shank Width (mm) | 55.00 |
| Shank Height (mm) | 50.00 |
| Series | LNUX19 |
| Overall Length (mm) | 250.0000 |
| Cutting Tool Application | Facing; Turning |
| Head Length (mm) | 70.00 |
| Back of Bar to Cutting Edge (mm) | 60.00 |
| Primary Workpiece Material | Universal |
| Insert Width (mm) | 10.00 |
| Toolholder Material | Steel |
| ISO Number | 6939143110 |
| Complete Insert Compatibility | LNUX |
| Insert Thickness | 19.05 |
| Coolant Through | No |
| Insert Inscribed Circle (mm) | 10.00 |
