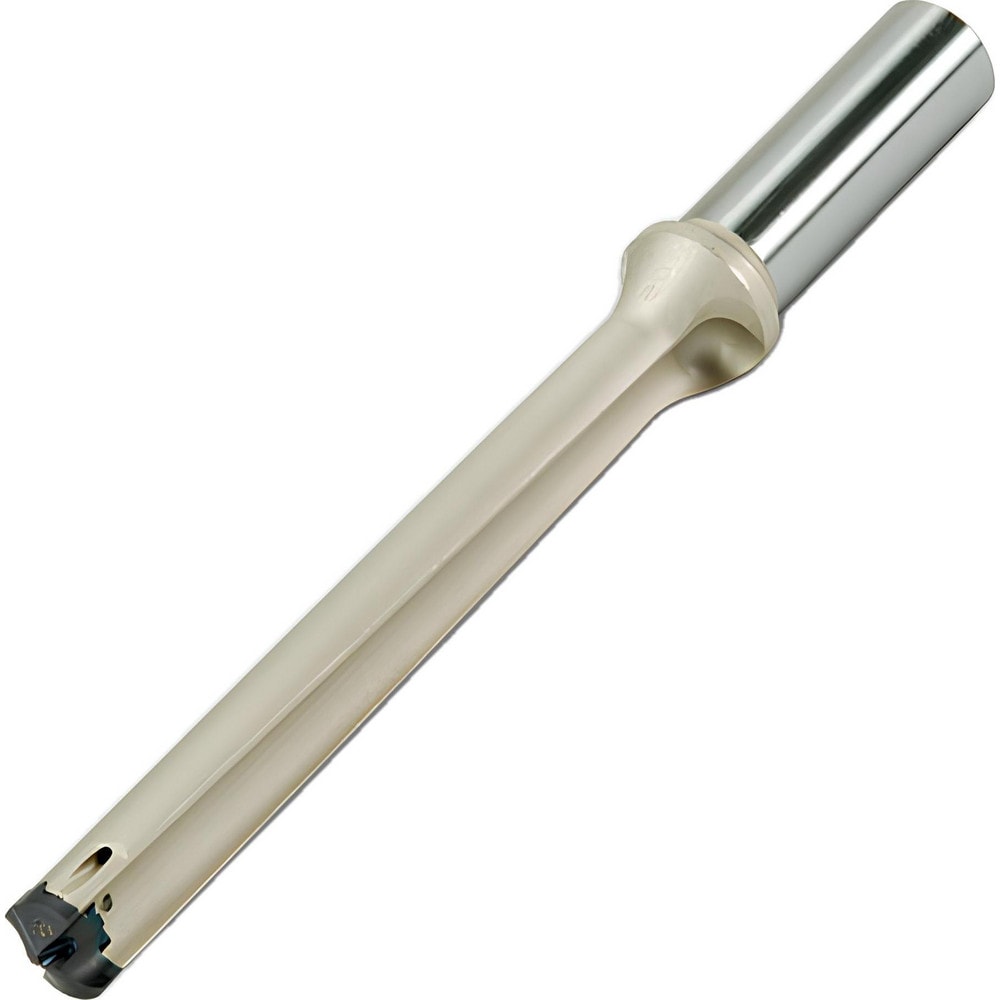

Brand: Ingersoll Cutting Tools / Part #: 3221211

Brand: Ingersoll Cutting Tools / Part #: 3221211


Item #: 01153170
Brand: Ingersoll Cutting Tools
Model #: 3221211

Product Specifications

Minimum Drill Diameter (Decimal Inch) 0.9449
Maximum Drill Diameter (Decimal Inch) 0.9803
Drill Depth by Diameter Ratio 8xD
Maximum Drill Depth (Decimal Inch) 7.5600
Shank Type Weldon Flat
Insert Style YBB; YAB
Shank Diameter (Decimal Inch) 1.0000
Insert Seat Size 24
Tool Material Steel
Compatible Insert Style YBB; YAB
Compatible Insert Size Code 24..
Overall Length (Decimal Inch) 11.0400
Series YD
Toolholder Style YD
Flute Length (Decimal Inch) 8.8300
Body Length (Decimal Inch) 8.8300
Shank Length (Decimal Inch) 2.2000
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Cutting Direction Right Hand
Coolant Through Yes
