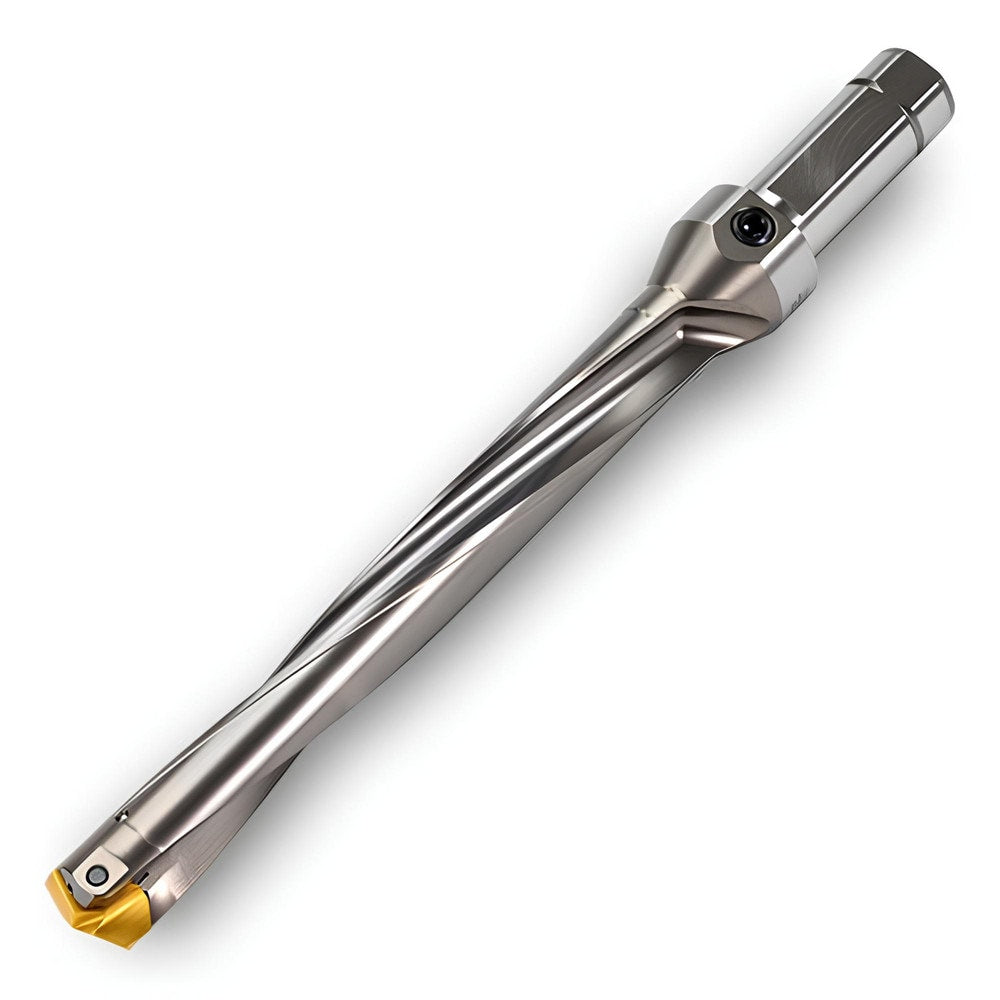

Brand: Ingersoll Cutting Tools / Part #: 6318314
Item #: 98826597
Brand: Ingersoll Cutting Tools
Model #: 6318314
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.9843 |
| Maximum Drill Diameter (Decimal Inch) | 1.0197 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 8.0300 |
| Shank Type | Flatted |
| Insert Style | LPA |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Seat Size | 25 |
| Tool Material | Steel |
| Compatible Insert Style | LPA |
| Compatible Insert Size Code | 25.. |
| Overall Length (Decimal Inch) | 13.1010 |
| Series | LD |
| Toolholder Style | LD |
| Flute Length (Decimal Inch) | 9.9410 |
| Body Length (Decimal Inch) | 9.9410 |
| Shank Length (Decimal Inch) | 3.1600 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
