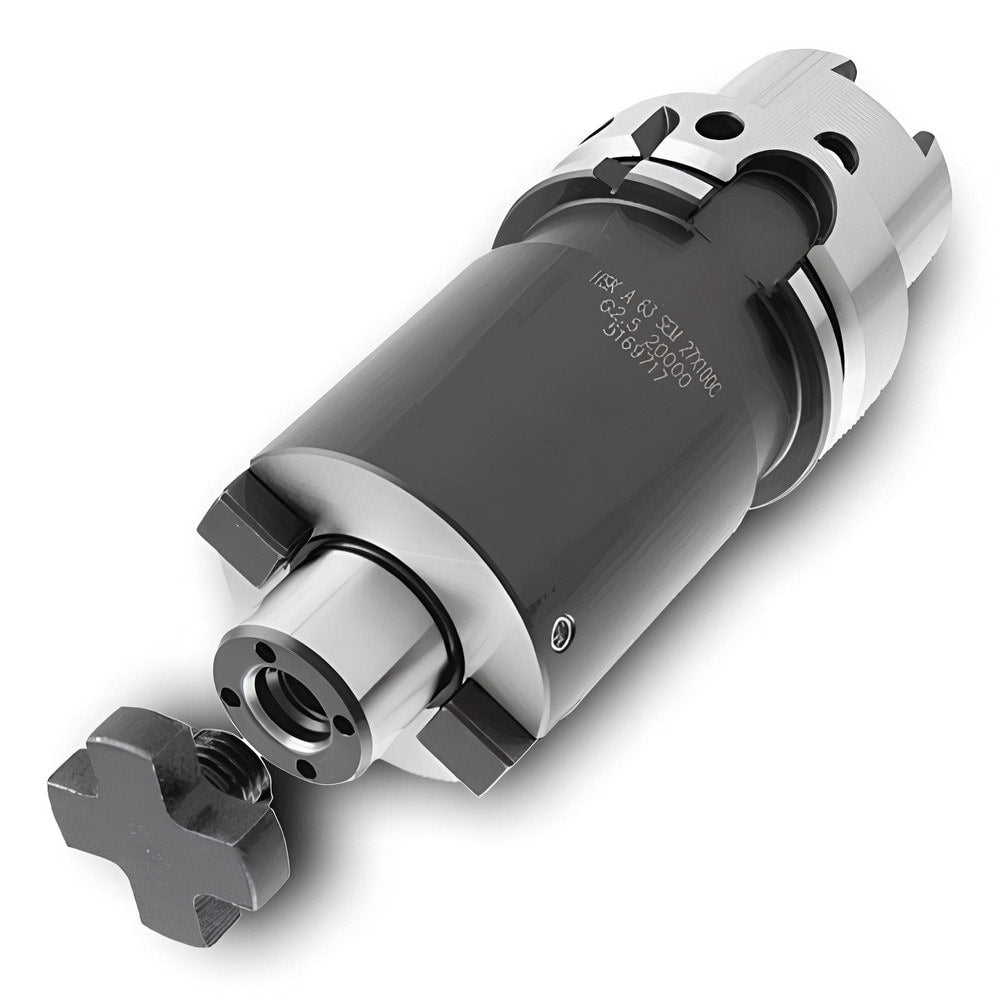

Brand: Ingersoll Cutting Tools / Part #: 3325172
Item #: 46764015
Brand: Ingersoll Cutting Tools
Model #: 3325172
Product Specifications
| Shank Type | Taper |
| Modular Connection Size | HSK A100 |
| Overall Length (Decimal Inch) | 5.9685 |
| Maximum RPM | 15000.000 |
| Taper Size | HSK A100 |
| Pilot Diameter (Decimal Inch) | 1.0000 |
| Pilot Diameter (Inch) | 1 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 2.1650 |
| Flange To Nose End | 4.0000 in |
| Through Coolant | Yes |
| Shank Diameter (Decimal Inch) | 0.0000 |
| Coolant Type | Through-Spindle |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Decimal Inch) | 5.0000 |
