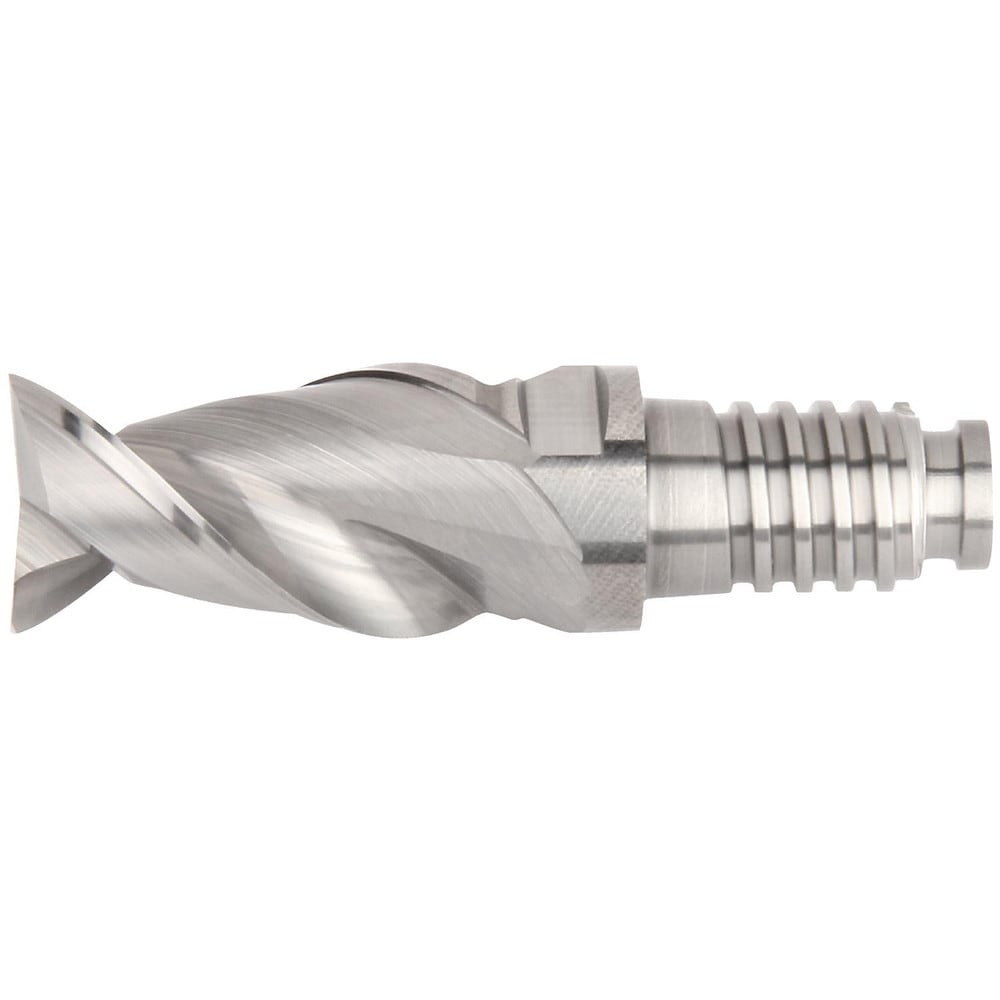

Brand: Widia / Part #: 6151049
Item #: 97701486
Brand: Widia
Model #: 6151049
Product Specifications
| Mill Diameter (Decimal Inch) | 0.4724 |
| Mill Diameter (mm) | 12.00 |
| Length of Cut (mm) | 18.0000 |
| Connection Type | Duo-Lock 12 |
| Overall Length (mm) | 42.0000 |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Center Cutting | Center Cutting |
| Flute Type | Helical |
| Helix Angle | 45 |
| Helix Style | High |
| Maximum Helix Angle | 45 |
| Minimum Helix Angle | 45 |
| Series/List | 5142 |
| Neck Diameter (Decimal Inch) | 0.4528 |
| Shank Diameter (mm) | 11.5000 |
| Variable Helix | No |
| Pitch | Normal |
| End Type | Square End |
| Length Type | Standard |
| Number Of Pieces | 1 |
| Chipbreaker | None |
| Shank Type | Modular Connection |
| Extended Reach | No |
| Single Or Double End | Single |
| Material Application | Aluminum |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7087 |
| Variable Index | No |
| Number Of Flutes | 2 |
| Finish Coating | Bright/Uncoated |
