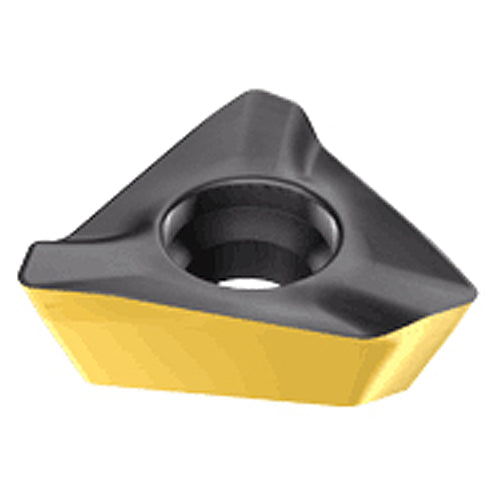

HM390 TCKT 0703PCTR IC845
Item #: EH5668394
Brand: Iscar
Model #: 5668394
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | |
| Shape | 60° Triangle |
| Application | | Countersinking | Facing | Helical Interpolation | Milling Inserts | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | |
| Maximum Feed per Tooth (fz(max)) | 0.0059 ″/tooth |
| Insert Length (INSL) | 0.307″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0197″ |
| Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.197″ |
| Minimum Feed per Tooth (fz(min)) | 0.0031 ″/tooth |
| Insert Thickness (S) | 0.124″ |
| Cutting Edge Effective Length (LE) | 0.197″ |
| Insert Included Angle (EPSR) | 60 Degrees |
| Measurement Type | Inch |
| Coating | AlTiN |
| Body Material | Carbide |
| Grade | IC845 |
