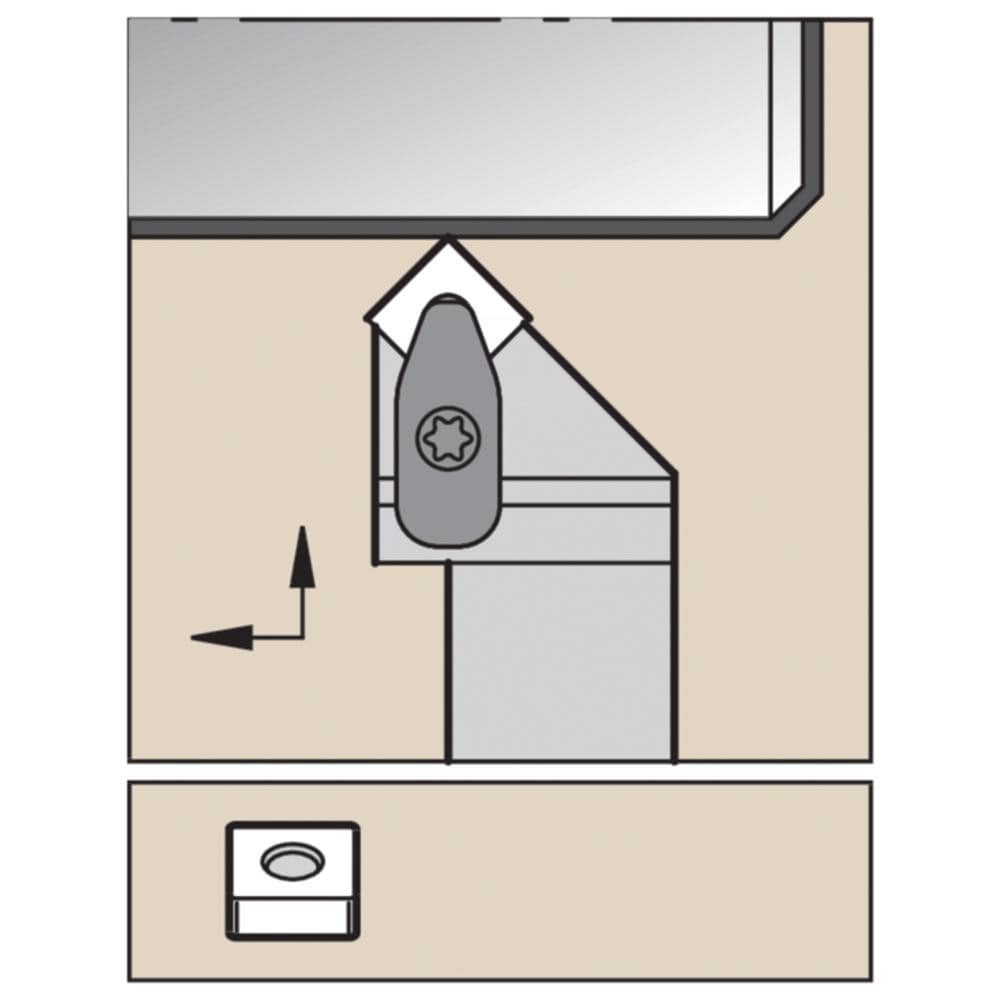

Brand: Widia / Part #: 5697754

Brand: Widia / Part #: 5697754


Item #: 99506727
Brand: Widia
Model #: 5697754

Product Specifications

Cutting Direction Right Hand
Hand of Holder Right Hand
Compatible Insert Size Code 43.
Toolholder Style DSSNR
Rake Negative
Rake Angle -8.4 (Radial);-5.5 (Axial)
Multi-use Tool Yes
Lead Angle 45.000
Insert Holding Method Clamp
Shank Width (Decimal Inch) 1.0000
Shank Width (Inch) 1
Insert Compatibility SN..43.
Shank Height (Decimal Inch) 1.0000
Shank Height (Inch) 1
Series DSSN
Overall Length (Decimal Inch) 6.0000
Overall Length (Inch) 6
Cutting Tool Application Facing; Copying; Turning
Head Length (Decimal Inch) 1.5000
Back of Bar to Cutting Edge (Inch) 21/32
Back of Bar to Cutting Edge (Decimal Inch) 0.9120
Primary Workpiece Material Universal
Insert Inscribed Circle (Decimal Inch) 0.5000
Insert Inscribed Circle (Inch) 1/2
Insert Width (Inch) 1/2
Insert Width (Decimal Inch) 0.5000
Toolholder Material Steel
ISO Number DSSNR164DKC3
Complete Insert Compatibility SN..
Coolant Through No
Insert Thickness (Decimal Inch) 0.1875
$78.82
