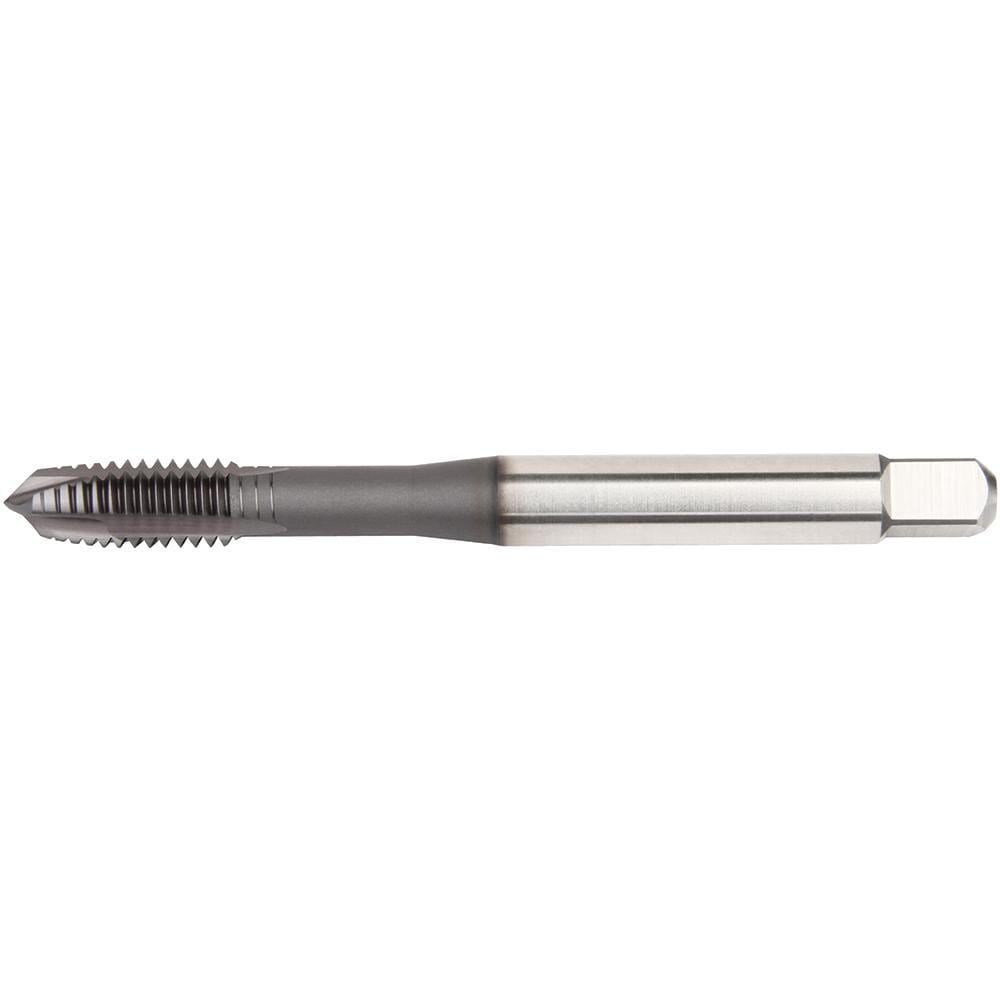

Brand: Widia / Part #: 5368196
Item #: 90871708
Brand: Widia
Model #: 5368196
Product Specifications
| Thread Size (mm) | M16x1.5 |
| Number Of Flutes | 3 |
| Chamfer | Plug |
| Thread Limit | 6H |
| Class Of Fit | 6H |
| Coating/Finish | Black Oxide |
| Threads per Inch | 17 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (mm) | 51.00 |
| Thread Pitch (mm) | 1.50 |
| Thread Standard | Metric Fine |
| Material Grade | WP49EG |
| Thread Length (mm) | 24.00 |
| Overall Length (mm) | 110.0000 |
| Shank Diameter (Decimal Inch) | 0.4800 |
| Square Length (mm) | 14.20 |
| Square Size (mm) | 9.07 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VT-SPO |
