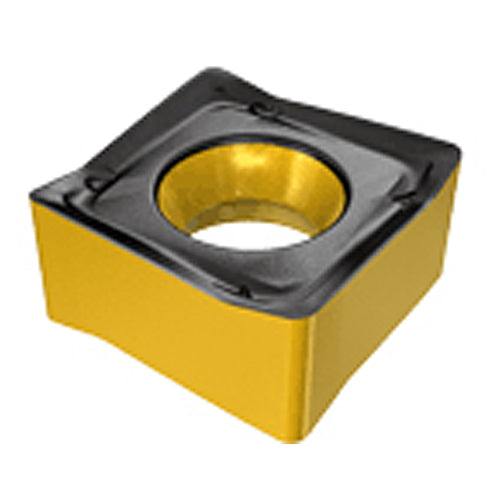

S890 SNMU 1305PNTR IC5100
Item #: EH5606640
Brand: Iscar
Model #: 5606640
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | |
| Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Application | | Facing | Milling Inserts | Shouldering | |
| Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0315″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.354″ |
| Tool Type | Double sided Inserts |
| Inscribed Circle Diameter (IC) | 0.512″ |
| Minimum Feed per Tooth (fz(min)) | 0.0039 ″/tooth |
| Insert Thickness (S) | 0.22″ |
| Cutting Edge Effective Length (LE) | 0.354″ |
| Coating | TiCN+Al2O3 |
| Measurement Type | Inch |
| Grade | IC5100 |
| Body Material | Carbide |
| Shape | 90° Square |
