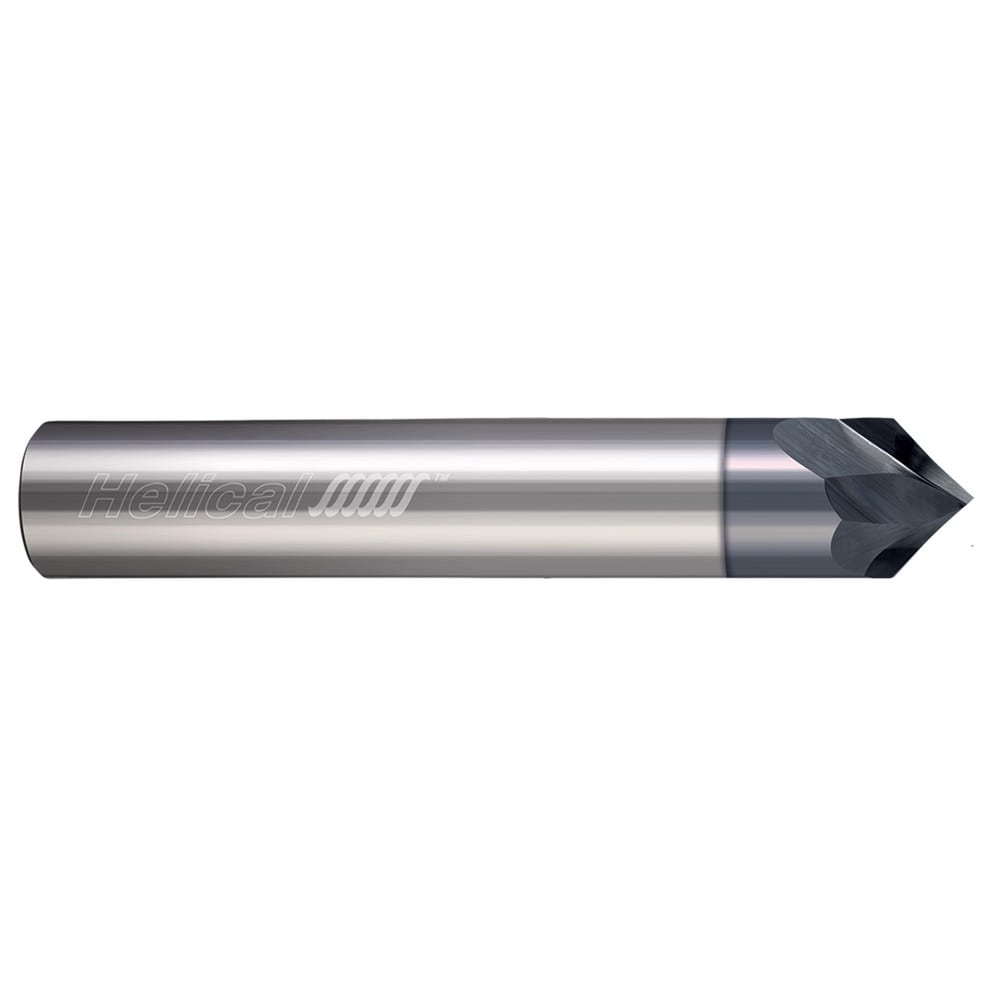

Brand: Helical Solutions / Part #: 83806
Item #: 99133308
Brand: Helical Solutions
Model #: 83806
Product Specifications
| Cutter Head Diameter (Decimal Inch) | 0.2500 |
| Number Of Flutes | 2 |
| End Type | Single |
| Included Centerline Angle | 45 |
| Included Side Angle | 45 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Cutting Direction | Right Hand |
| Series | Specialty Profiles - Chamfer Mills - Helical Flute - 2 & 4 Flute - High Performance - Pointed |
| Chamfer Mill Material | Solid Carbide |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1200 |
| Coating/Finish | Aplus |
| Single Or Double End | Single |
| Included Angle | 90.00 |
