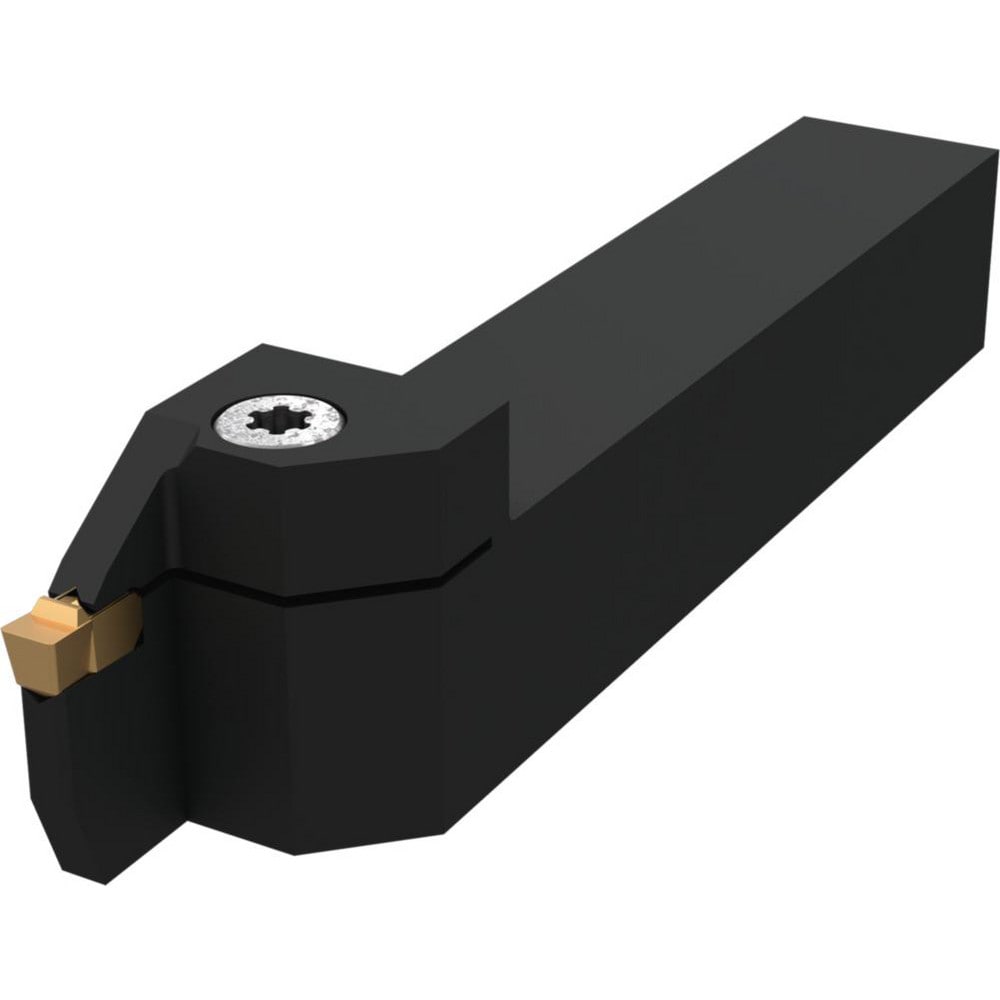

Brand: Widia / Part #: 6949791

Brand: Widia / Part #: 6949791


Item #: 98291438
Brand: Widia
Model #: 6949791

Product Specifications

Internal or External External
Maximum Depth of Cut (Decimal Inch) 0.3150
Hand of Holder Right Hand
Maximum Groove Width (Decimal Inch) 0.0787
Minimum Groove Width (Decimal Inch) 0.0787
Toolholder Style WGCSM
Tool Material Steel
Insert Holding Method Clamp
Compatible Insert Size Code 0200
Insert Compatibility WG0200M02P02
Shank Height (Inch) 1
Shank Height (Decimal Inch) 1.0000
Shank Length (Decimal Inch) 5.0945
Shank Width/Diameter (Decimal Inch) 1.0000
Shank Width/Diameter (Inch) 1
Series WGCSM
Overall Length (Decimal Inch) 6.0000
Cutting Tool Application Grooving; Facing; Cut-Off; Turning
Back of Bar to Cutting Edge (Decimal Inch) 1.0014
Head Height (mm) 32.400
Head Length (Decimal Inch) 0.9055
Primary Workpiece Material Universal
Insert Seat Size 2.0
Coolant Through No
