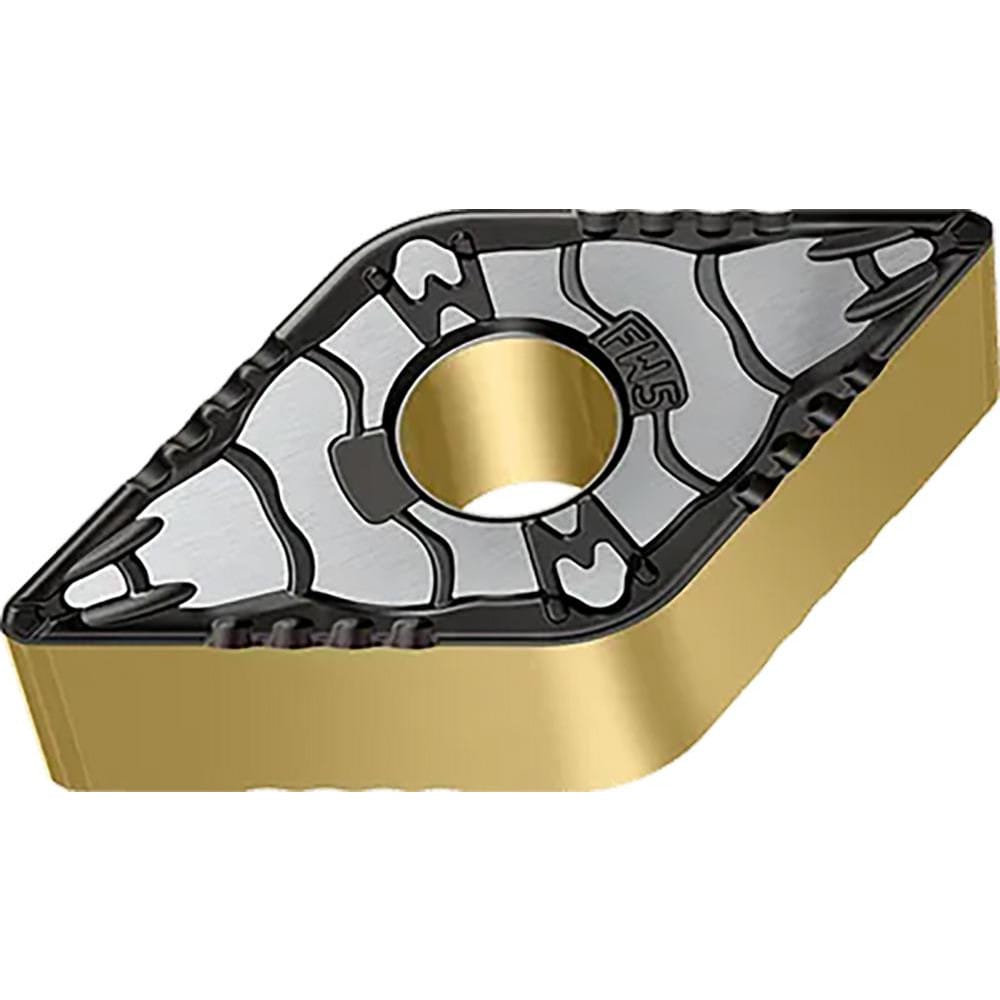

Turning Insert: DNMG332-FW5 WPP20G, Carbide
Item #: 16358806
Brand: Walter
Model #: 8115754
Product Specifications
| ANSI Insert Code | DNMG332 |
| ISO Insert Code | DNMG110408 |
| Relief Angle | 0 |
| Insert Style | DNMG |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 55 |
| Manufacturer Grade | WPP20G |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | Yes |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | DNMG-FW5 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Chip Breaker Operation | Wiper - Finishing |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.4580 |
| Insert Holding Method | Pin; Clamp |
| Width (Inch) | 3/8 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.4580 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Iso Code | DNMG110408-FW5 WPP20G |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 8115754 |
| Material Grade | K30; P20 |
| Proprietary Coating Designation | Multilayer Coating |
| Lead Angle | 55 |
| Coating Classification | CVD |
| Chip Breaker | FW5 |
| Rake Angle | 15 |
| Cutting Edge Style | Honed; Chamfered |
| Industry Standard Number | DNMG332-FW5 WPP20G |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Back Turning; Boring |
| ANSI Size Code | 332 |
| ISO Size Code | 110408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 332 |
