Brand: Widia / Part #: 3879772

Brand: Widia / Part #: 3879772


Item #: 98435555
Brand: Widia
Model #: 3879772

Product Specifications

Cutting Direction Left Hand
Hand of Holder Left Hand
Compatible Insert Size Code 1604..

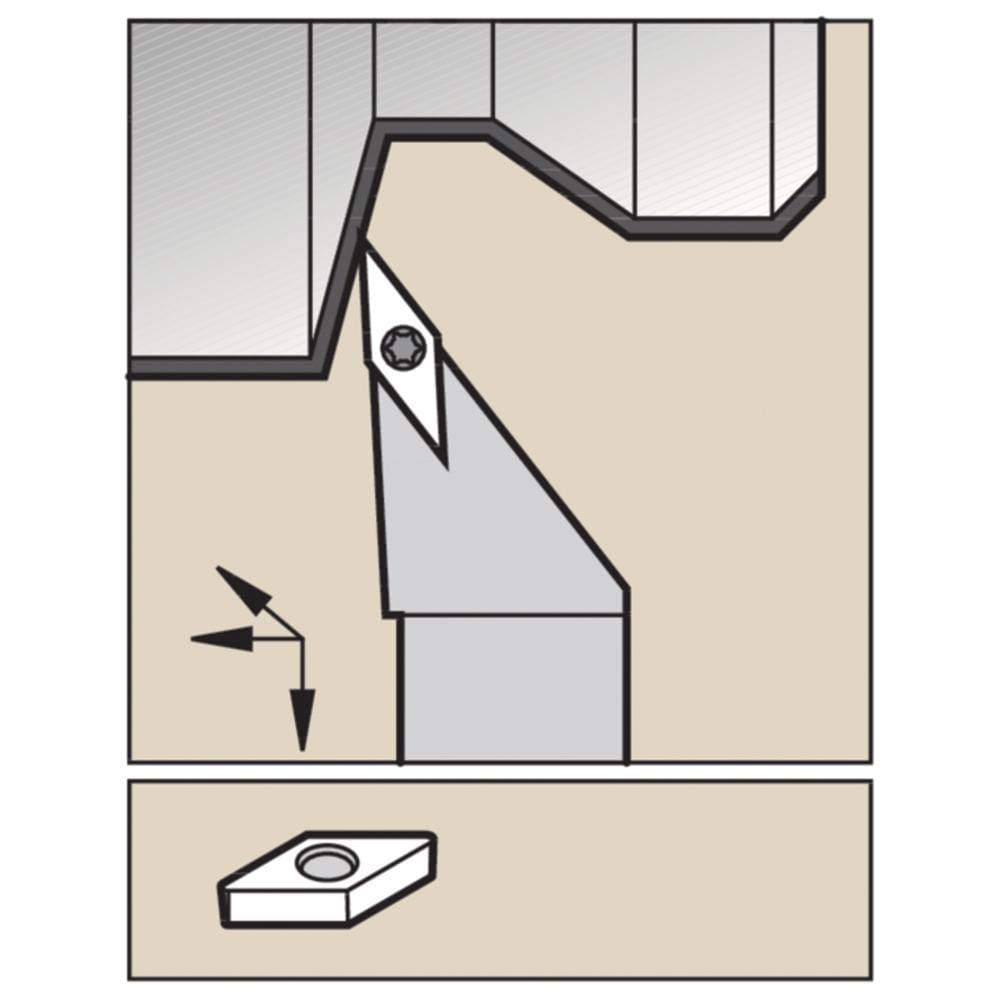

Toolholder Style SVJBL
Rake Positive
Rake Angle 0 (Axial);0 (Radial)
Multi-use Tool Yes
Lead Angle 93.000
Insert Holding Method Screw
Insert Compatibility VB..1604..
Shank Width (mm) 16.00
Shank Height (mm) 16.00
Series SVJB
Overall Length (mm) 100.0000
Cutting Tool Application Copying; Turning
Head Length (mm) 35.00
Back of Bar to Cutting Edge (mm) 20.00
Primary Workpiece Material Universal
Insert Width (mm) 9.53
Toolholder Material Steel
ISO Number SVJBL1616H16
Complete Insert Compatibility VB..
Insert Thickness 4.76
Coolant Through No
Insert Inscribed Circle (mm) 9.53
$125.88
