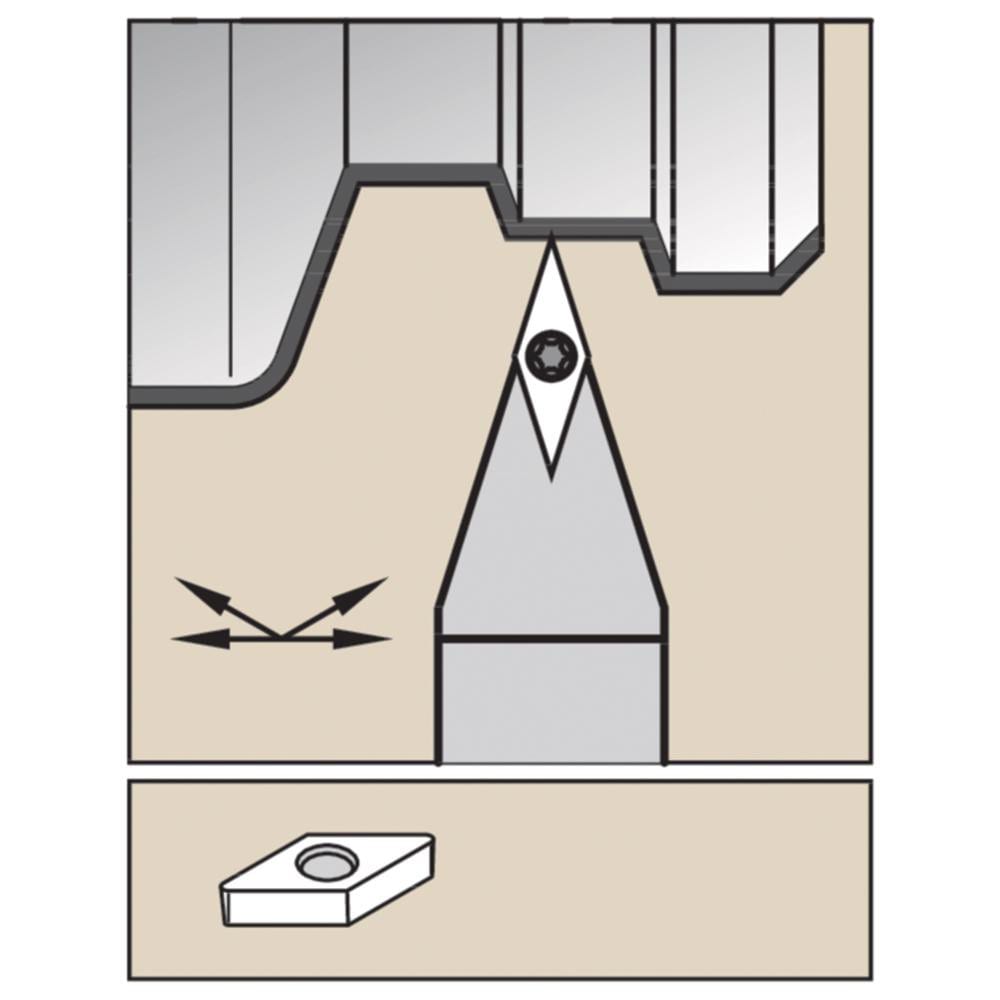

Brand: Widia / Part #: 3879778

Brand: Widia / Part #: 3879778


Item #: 98434483
Brand: Widia
Model #: 3879778

Product Specifications

Cutting Direction Neutral
Hand of Holder Neutral
Compatible Insert Size Code 1604..
Toolholder Style SVVBN
Rake Positive
Rake Angle 0 (Axial);0 (Radial)
Multi-use Tool Yes
Lead Angle 72.500
Insert Holding Method Screw
Insert Compatibility VB..1604..
Shank Width (mm) 25.00
Shank Height (mm) 25.00
Series SVVB
Overall Length (mm) 150.0000
Cutting Tool Application Copying; Turning
Head Length (mm) 33.02
Back of Bar to Cutting Edge (mm) 12.50
Primary Workpiece Material Universal
Insert Width (mm) 9.53
Toolholder Material Steel
ISO Number SVVBN2525M16
Complete Insert Compatibility VB..
Insert Thickness 4.76
Coolant Through No
Insert Inscribed Circle (mm) 9.53
$125.23
