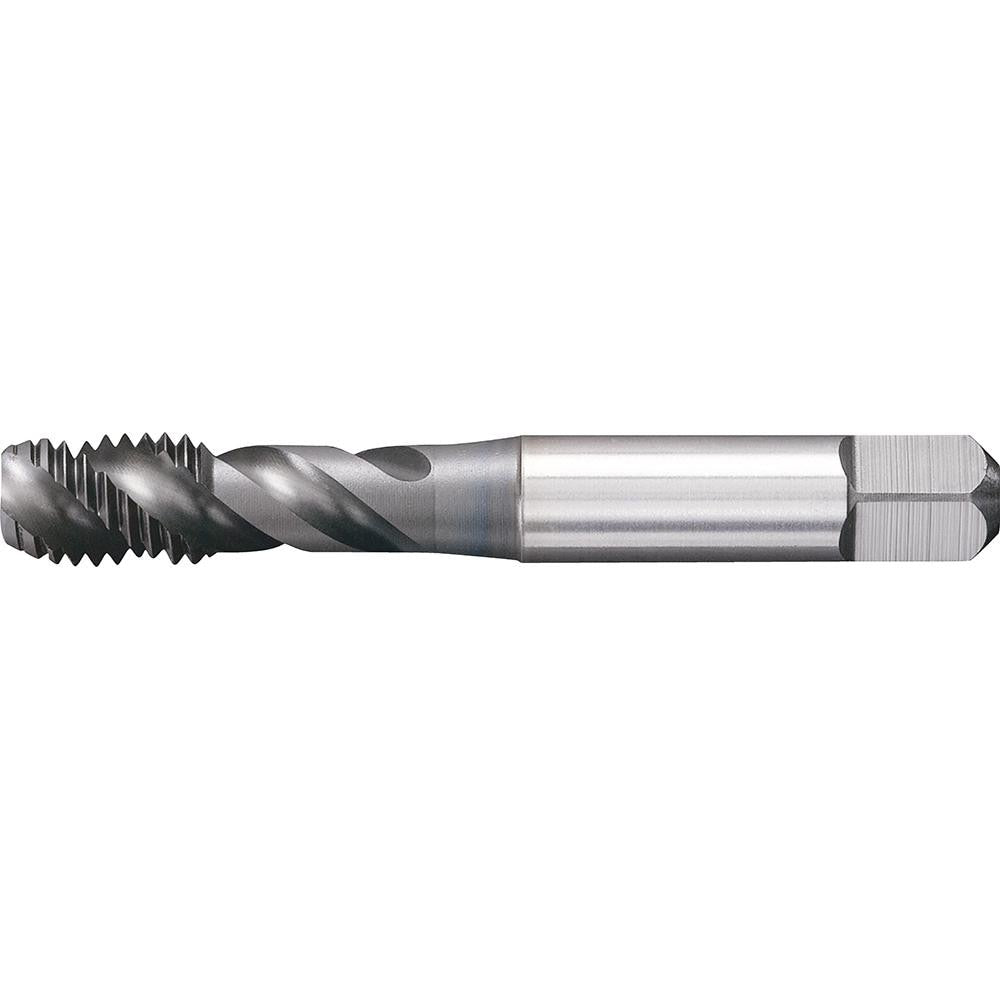

Brand: Widia / Part #: 3955068
Item #: 97433916
Brand: Widia
Model #: 3955068
Product Specifications
| Thread Size (mm) | M16x2 |
| Chamfer | Modified Bottoming |
| Thread Limit | D10 |
| Class Of Fit | 6HX |
| Number Of Flutes | 5 |
| Material | Powdered Metal |
| Threads per Inch | 13 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | C; CrC |
| Thread Depth (mm) | 48.00 |
| Coolant Through | No |
| Thread Length (mm) | 23.10 |
| Overall Length (mm) | 96.8000 |
| Thread Pitch (mm) | 2.00 |
| Thread Standard | Metric |
| Material Grade | WS34MG |
| Shank Diameter (mm) | 12.1900 |
| Square Length (mm) | 14.20 |
| Square Size (mm) | 9.07 |
| Material Application | Stainless Steel |
| Series | GT30 |
