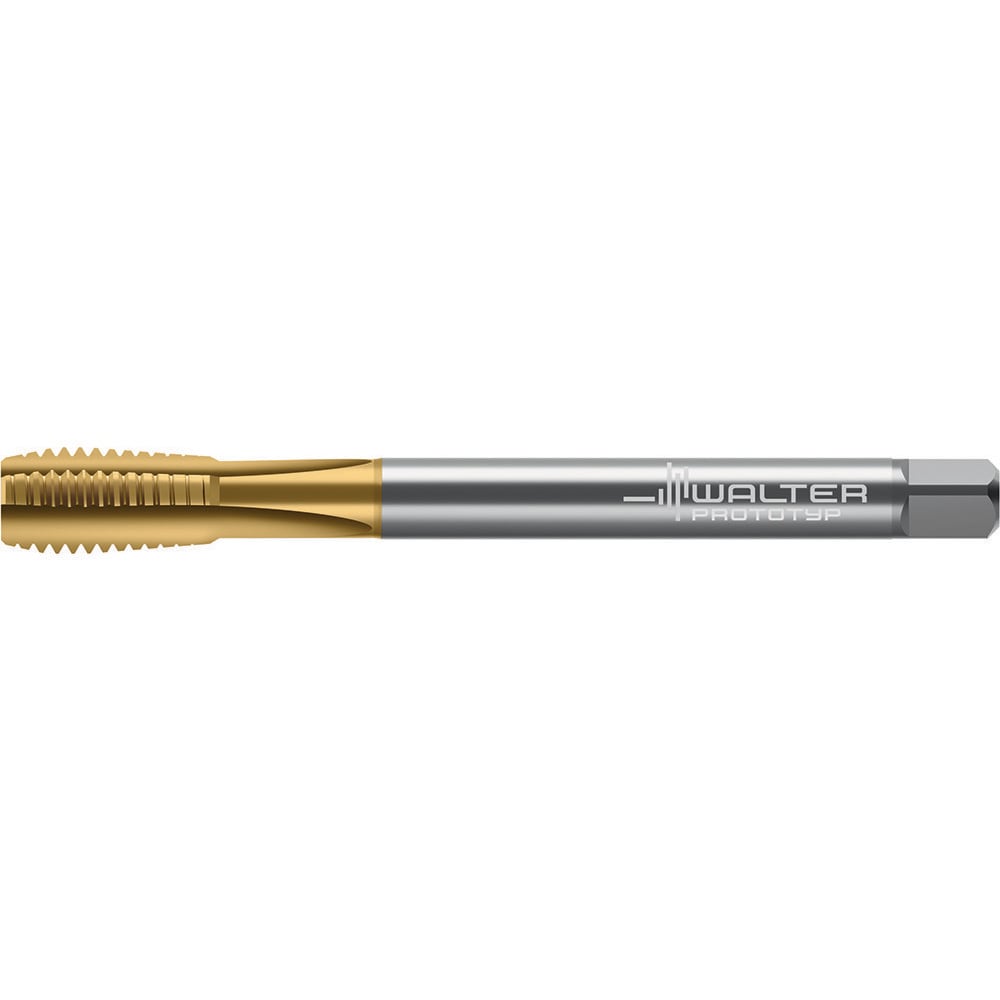

Straight Flute Tap: MF18x1.5 Metric Fine, 3 Flute, Semi-Bottoming Chamfer, 6HX Class of Fit, HSS-E, TiN Finish
Item #: 59344291
Brand: Walter-Prototyp
Model #: 8237485
Product Specifications
| Tap Type | Straight Flute |
| Thread Size (mm) | MF18x1.5 |
| Thread Standard | Metric Fine |
| Chamfer | Semi-Bottoming |
| Material | High-Speed Steel-E |
| Coating/Finish | TiN |
| Thread Direction | Right Hand |
| Coolant Through | Yes |
| Class Of Fit | 6HX |
| Thread Limit | H9 |
| Number Of Flutes | 3 |
| Oversize | No |
| Overall Length (Decimal Inch) | 4.3307 |
| Overall Length (mm) | 110.0000 |
| Thread Pitch (mm) | 1.50 |
| Thread Length (Inch) | 0.9449 |
| Thread Length (mm) | 24.00 |
| Application | Threading |
| Shank Diameter (mm) | 14.0000 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Tapping Depth (mm) | 24.00 |
| Tapping Depth (Decimal Inch) | 0.9449 |
| Square Length (mm) | 14.00 |
| Square Length (Decimal Inch) | 0.5512 |
| Square Size (mm) | 11.00 |
| Square Size (Decimal Inch) | 0.4331 |
| Series | TC130 |
| UNSPSC Code | 23241600 |
| Tap Type | Straight Flute |
| Thread Size (mm) | MF18x1.5 |
| Thread Standard | Metric Fine |
| Chamfer | Semi-Bottoming |
| Material | High-Speed Steel-E |
| Coating/Finish | TiN |
| Thread Direction | Right Hand |
| Coolant Through | Yes |
| Class Of Fit | 6HX |
| Thread Limit | H9 |
| Number Of Flutes | 3 |
| Oversize | No |
| Overall Length (Decimal Inch) | 4.3307 |
| Overall Length (mm) | 110.0000 |
| Thread Pitch (mm) | 1.50 |
| Thread Length (Inch) | 0.9449 |
| Thread Length (mm) | 24.00 |
| Application | Threading |
| Shank Diameter (mm) | 14.0000 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Tapping Depth (mm) | 24.00 |
| Tapping Depth (Decimal Inch) | 0.9449 |
| Square Length (mm) | 14.00 |
| Square Length (Decimal Inch) | 0.5512 |
| Square Size (mm) | 11.00 |
| Square Size (Decimal Inch) | 0.4331 |
| Series | TC130 |
| UNSPSC Code | 23241600 |
| MSC Part # | 59344291 |
| Mfr Part # | 8237485 |
| Country of Origin Country of Origin is subject to change | Germany |
