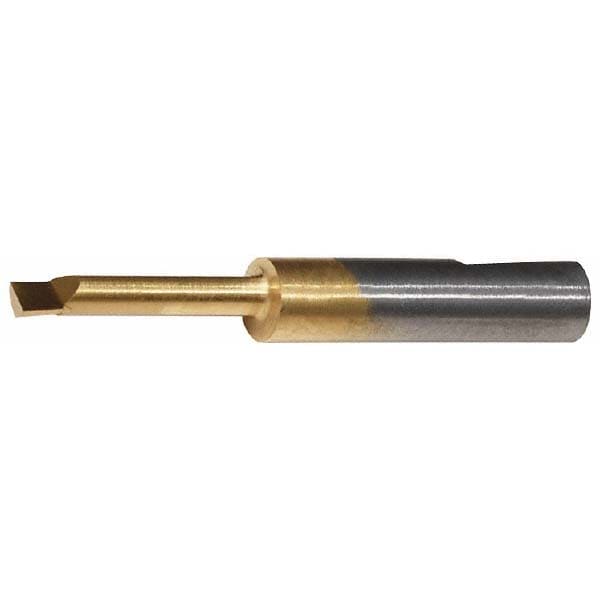

Brand: Widia / Part #: 2836599
Item #: 70742473
Brand: Widia
Model #: 2836599
Product Specifications
| Boring Bar Type | Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.0940 |
| Material | Solid Carbide |
| Material Grade | Ultra Fine Grain |
| Maximum Bore Depth (Decimal Inch) | 0.5000 |
| Shank Diameter (Decimal Inch) | 3/32 |
| Finish Coating | Bright/Uncoated |
| Corner Radius (Decimal Inch) | 0.0000 |
| Bar End Angle | 2 |
| Manufacturer Grade | CM1 |
| Series | ABD Series |
| Coating Process | Uncoated |
| Manufacturers Catalog Number | ABD09500R |
| Overall Length (Decimal Inch) | 1.1500 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
